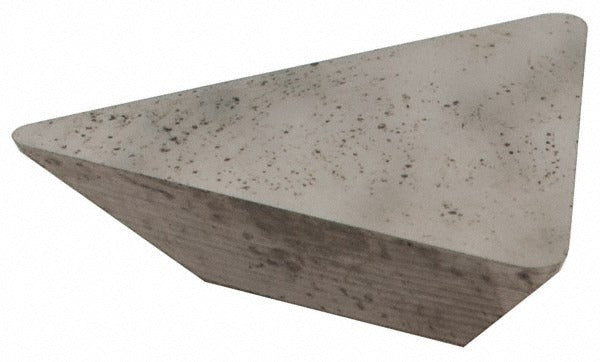

Allied Machine J1926-08-C3H Indexable Drill Insert 8C3 Carbide

Product Description

The ALLIED MACHINE AND ENGINEERING J1926-08-C3H is a solid carbide coated indexable drill insert designed for use in indexable drilling systems. Featuring the 8C3 insert style in the Series 08 platform, this insert delivers consistent cutting performance across a wide range of workpiece materials. The solid carbide substrate with coating provides wear resistance and thermal stability during drilling operations. Typically installed and serviced by machinists and tooling technicians in production or job-shop environments, this insert is a consumable component replaced at the end of its usable edge life.

The J1926-08-C3H carries a Universal primary workpiece material designation, corresponding to ISO material groups H, K, M, N, P, and S. This broad compatibility makes it suitable for ferrous and non-ferrous metals, cast iron, stainless steel, heat-resistant superalloys, and non-metallic materials. It is well-suited for CNC machining centers, horizontal boring mills, and multi-axis drilling applications where indexable tooling systems are standard.

Key Features

• 8C3 insert style within the Series 08 indexable drilling platform
• Solid carbide construction with coating for extended tool life and thermal resistance
• Universal material compatibility covering ISO groups H, K, M, N, P, and S
• Manufactured to ISO 9001:2015 quality standards
• Lightweight at 0.01 pounds, minimizing added mass in multi-insert assemblies

Compatibility

Designed for use in ALLIED MACHINE AND ENGINEERING Series 08 indexable drill bodies that accept the 8C3 insert style. No specific additional compatible model numbers were provided in the product data.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the drill body spindle is fully stopped and the machine is locked out and tagged out before inserting or replacing indexable inserts. Use the correct torque wrench and insert screw specified by the drill body manufacturer to secure the insert properly. Inspect the insert seat and clamping screw for wear or debris before each insert change to ensure accurate seating and safe operation.
