Allied Machine HDTM18NPT Helical Flute Thread Mill Npt

Product Description

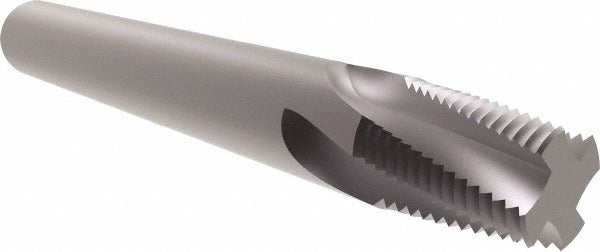

The ALLIED MACHINE AND ENGINEERING HDTM18NPT is a solid carbide helical flute thread mill designed for cutting both internal and external NPT threads in a single helical pass. It runs 18 teeth per inch (TPI) and produces a 0.363-inch cutting diameter with a 0.68-inch length of cut. The TiAlN coating improves heat resistance and extends tool life in ferrous and hardened materials. With a 3/8-inch shank diameter and a 3.5-inch overall length, this tool mounts in standard CNC machining centers and is handled by machinists and tool-and-die professionals working in precision threading applications.

This thread mill is suited for NPT thread applications in materials where a single-point or tap-style operation is less practical. The right-hand flute direction and 4-flute geometry provide chip evacuation and surface finish control during helical interpolation. It is appropriate for use on CNC machining centers capable of helical interpolation, covering internal bores with a minimum nominal diameter of 0.25 inches and compatible external thread profiles of the same standard.

Key Features

• Cuts both internal and external NPT threads with a single tool
• 18 TPI with 0.363-inch cutting diameter for consistent thread form
• TiAlN coating for improved heat resistance and extended tool life
• 4-flute right-hand helical geometry promotes chip evacuation
• Solid carbide construction for rigidity and dimensional stability
• No coolant-through requirement simplifies setup

Compatibility

Designed for NPT thread milling on CNC machining centers capable of helical interpolation, with a minimum nominal thread diameter of 0.25 inches for internal applications and equivalent external NPT profiles.

Installation Notes
