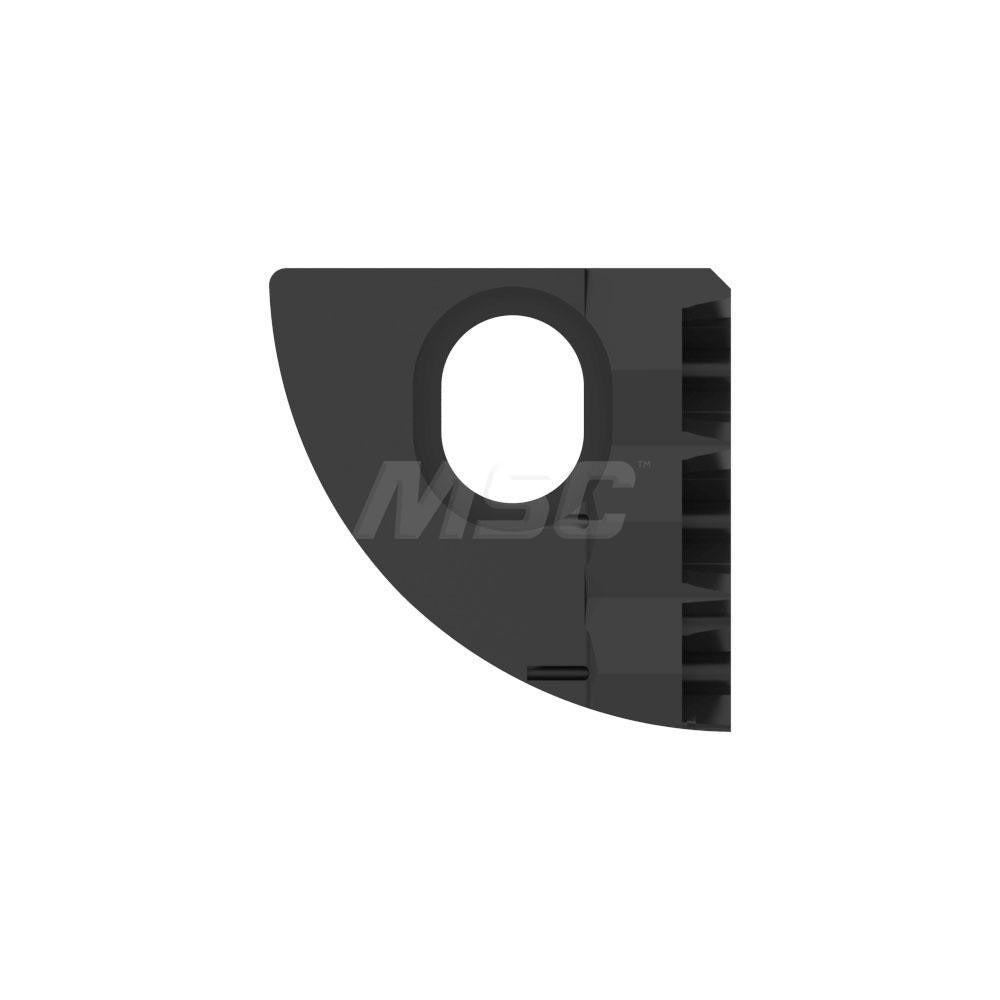

Allied Machine C46-ADJ Revolution Drill Outer Cartridge

Product Description

The ALLIED MACHINE AND ENGINEERING C46-ADJ is an outer drill cartridge designed for use in the Revolution Drill series indexable drilling system. This cartridge holds three inserts and occupies the outer position within the drill body, controlling the full cutting diameter and surface finish of the bore. It is a precision tooling component used in CNC machining, boring, and holemaking operations across manufacturing and metalworking environments. The C46-ADJ is compatible with insert size code 05T308 and accepts a range of OP-series insert geometries to suit various workpiece materials and finish requirements. Installation and changeover are typically performed by machinists or tooling specialists.

This cartridge is suited for production drilling applications where the Revolution Drill system is in use. It is applied in both roughing and finishing holemaking operations depending on insert selection. The outer cartridge position makes it the primary driver of hole diameter accuracy and wall finish quality. Compatible inserts include OP-05T308-1H, OP-05T308-1P, OP-05T308-1T, OP-05T308-2H, OP-05T308-2P, OP-05T308-H, OP-05T308-HHR, OP-05T308-P, OP-05T308-PHR, and OP-05T308-T, allowing the cartridge to be configured for a range of machining conditions.

Key Features

• Outer cartridge position for diameter control and bore finish in the Revolution Drill system
• Accepts 3 inserts per cartridge for extended edge life and material removal capacity
• Compatible with insert size code 05T308 across multiple OP-series insert styles
• Supports 10 distinct insert part numbers covering varied geometry and coating options
• Conforms to ISO standards for indexable tooling components

Compatibility

Designed for use with the Allied Machine and Engineering Revolution Drill series. Compatible inserts: OP-05T308-1H, OP-05T308-1P, OP-05T308-1T, OP-05T308-2H, OP-05T308-2P, OP-05T308-H, OP-05T308-HHR, OP-05T308-P, OP-05T308-PHR, and OP-05T308-T.

Installation Notes

This cartridge is installed and replaced by qualified machinists or tooling technicians familiar with indexable drill systems. Power down and lock out the machine spindle before removing or seating any cartridge or insert. Use the appropriate torx or hex key as specified by the tool body documentation when securing the cartridge. Do not exceed the recommended spindle speeds or feeds for the installed insert geometry.
