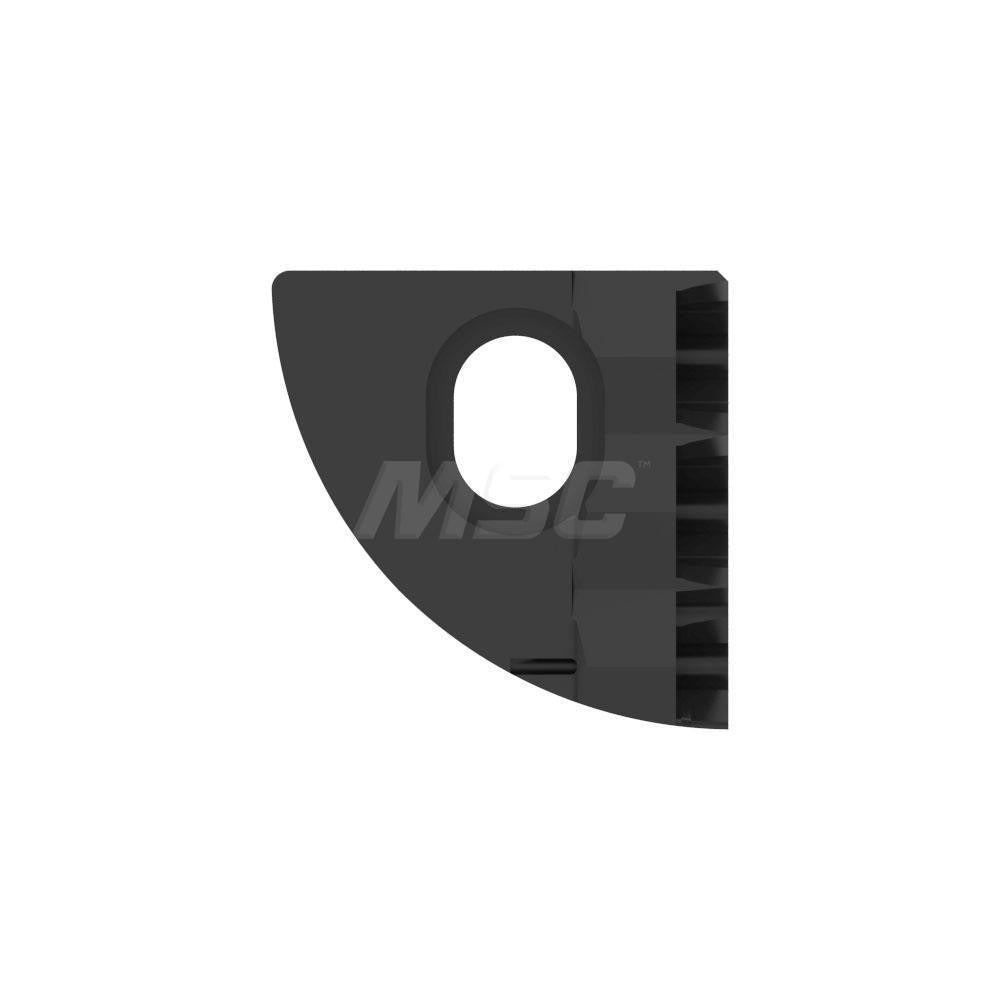

Allied Machine C44-ADJ Revolution Drill Outer Cartridge

Product Description

The ALLIED MACHINE AND ENGINEERING C44-ADJ is a 3-insert outer drill cartridge designed for use in the Revolution Drill series. It seats in the outer cartridge position of the drill body and holds three indexable inserts to perform the primary cutting work during deep-hole and large-diameter drilling operations. The C44-ADJ accepts inserts with the 05T308 size code and is compatible with a wide range of OP-series insert geometries, giving machinists flexibility to match insert grade and chipbreaker style to the workpiece material. This cartridge is installed by machinists and tooling technicians working in production turning, milling, and drilling environments.

This cartridge is suited for applications on CNC machining centers and turning centers where the Revolution Drill system is deployed. It is used in both roughing and finishing drilling passes depending on the insert selected. The outer cartridge position handles the diameter-defining cut, making precise cartridge seating critical to hole quality and size control. Operations in aerospace, automotive, oil and gas, and general metalworking commonly use Revolution Drill tooling of this type.

Key Features

• Outer cartridge location for Revolution Drill series drill bodies
• Accepts 3 indexable inserts per cartridge for increased material removal
• Compatible insert size code: 05T308
• Works with OP-05T308-1H, OP-05T308-1P, OP-05T308-1T, OP-05T308-2H, OP-05T308-2P, OP-05T308-H, OP-05T308-HHR, OP-05T308-P, OP-05T308-PHR, and OP-05T308-T insert styles
• Meets ISO standards for indexable tooling components
• Sold as a single-cartridge unit (package quantity: 1)

Compatibility

Designed for use in ALLIED MACHINE AND ENGINEERING Revolution Drill series bodies in the outer cartridge position. Compatible inserts include OP-05T308-1H, OP-05T308-1P, OP-05T308-1T, OP-05T308-2H, OP-05T308-2P, OP-05T308-H, OP-05T308-HHR, OP-05T308-P, OP-05T308-PHR, and OP-05T308-T.

Installation Notes

Cartridge installation and replacement should be performed by qualified machinists or toolroom technicians familiar with indexable drilling systems. Ensure the drill body is fully removed from the spindle and all machine motion is disabled before servicing cartridges. Use the appropriate torx or hex keys as specified by the drill body documentation when securing the cartridge and clamping screws. Verify insert seating and cartridge position before returning the tool to service to maintain hole diameter tolerance.
