Allied Machine AS5202-04-C5A Carbide Porting Insert C5A

Product Description

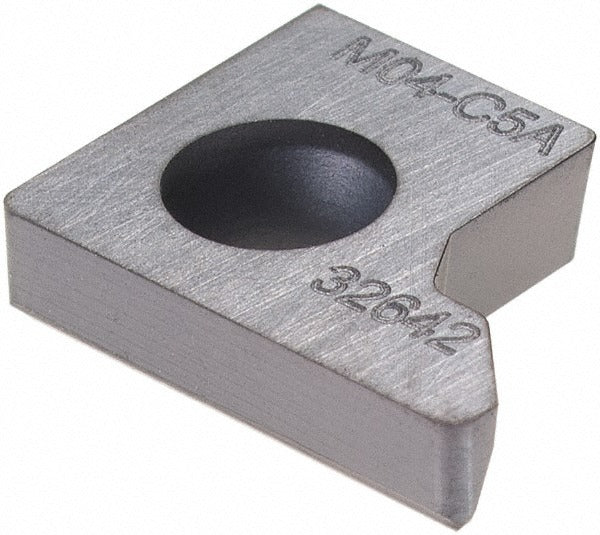

The ALLIED MACHINE AND ENGINEERING AS5202-04-C5A is a Grade C5A carbide porting insert designed for precision port machining operations. Featuring a TiAlN (titanium aluminum nitride) coating, this insert delivers improved wear resistance and thermal stability during cutting. It conforms to multiple industry standards including SAE AS5202, SAE J-1926, SAE J-2244-1, ISO 11926-1, and ISO 6149, making it suitable for a broad range of hydraulic porting and fitting seat applications. Machinists and tooling technicians install this insert into compatible porting tool bodies to produce consistent, repeatable port geometry in production and maintenance environments.

The AS5202-04-C5A is rated for universal primary workpiece material compatibility, covering ISO material groups H, K, N, and P. This includes cast irons, non-ferrous materials, non-metals, and steel. It is used in metalworking shops, fluid power component manufacturing, and hydraulic system repair environments where SAE and ISO porting standards must be held to tight tolerances. The insert style is AS5202, size code 04, and is sold in single-unit quantities.

Key Features

• Grade C5A carbide substrate for reliable cutting performance across multiple material groups
• TiAlN coating improves heat resistance and extends tool life in demanding cuts
• Conforms to SAE AS5202, SAE J-1926, SAE J-2244-1, ISO 11926-1, ISO 6149, JDS-G173.1, and MS-33649 standards
• Universal workpiece material rating covers ISO groups H, K, N, and P
• Insert size code 04 for use in the appropriate AS5202-series tool body
• Sold individually, minimum order quantity of 1

Compatibility

Designed for use with AS5202-series porting tool bodies. Compatible workpiece material groups include ISO H (hardened steel and hard cast iron), K (cast iron), N (non-ferrous), and P (steel). Meets dimensional and tolerance requirements defined under SAE AS5202 and ISO 11926-1 porting standards.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians using the appropriate AS5202-series porting tool holder. Ensure the tool body and insert pocket are clean and free of chips before seating the insert. Follow the tool manufacturer torque and clamping guidance for the specific holder design. Always reference applicable SAE and ISO porting standards when setting up the operation to confirm correct port geometry and finish requirements.
