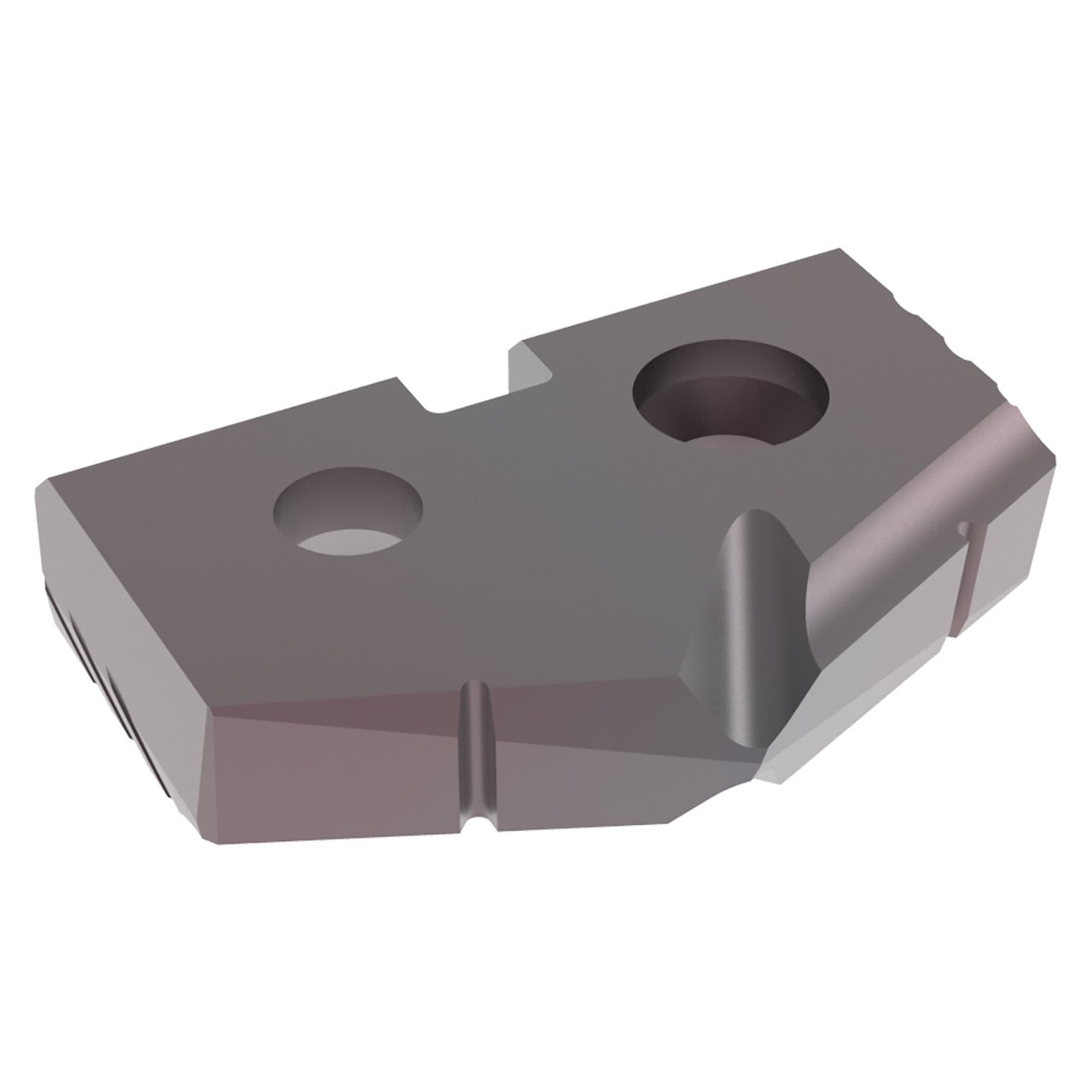

Allied Machine And Engineering TAM1-22.62 T-A Pro Replaceable Drill Insert (22.62 mm / 132 Degree)

Product Description

Allied Machine and Engineering TAM1-22.62 is a T-A Pro 1 series replaceable drill insert with a 22.62 mm diameter and 5/32 in thickness. It has M geometry and an AM300 finish; a proprietary coolant outlet provides improved performance in low coolant conditions (200 psi / 13.80 bar). The insert is carbide construction and is compatible with previous T-A insert holders for ISO material drilling across multiple industries.

• 22.62 mm diameter, 5/32 in thickness, 132 Degree included angle, M geometry
• Carbide construction with AM300 finish; part of the T-A Pro 1 series
• Proprietary coolant outlet for low-coolant performance (200 psi / 13.80 bar); compatible with previous T-A insert holders

Product Highlights

T-A Pro 1 series replaceable carbide insert, 22.62 mm diameter, 5/32 in thickness, AM300 finish, 132 Degree included angle, optimized for ISO material drilling with low-coolant capability

Product Information

Standard Information

• Brand: ALLIED MACHINE AND ENGINEERING
• Manufacturer Part Number: TAM1-22.62
• Country of Origin: United States
