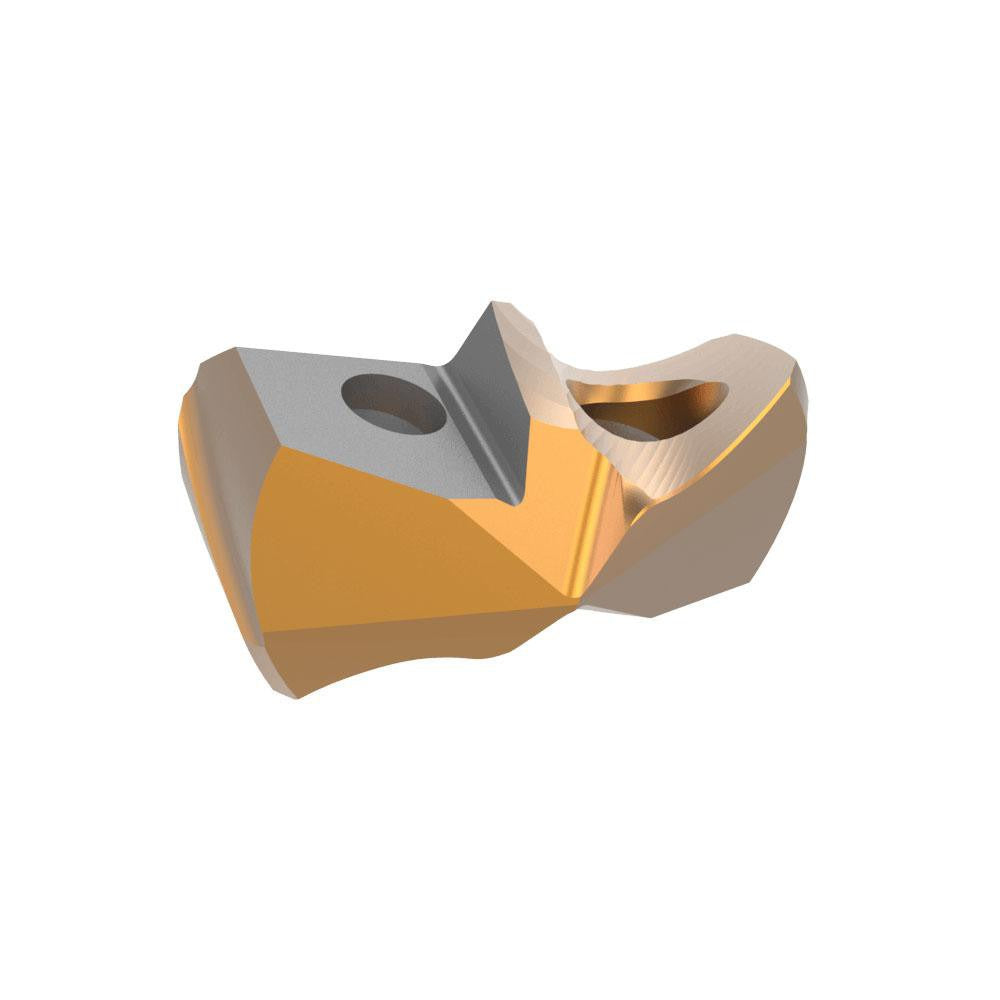

Allied Machine 7C132P-0110 Spade Drill Insert 1-5/16 in

Product Description

The ALLIED MACHINE AND ENGINEERING 7C132P-0110 is a carbide spade drill insert designed for high-performance drilling in steel and hard material applications. Part of the GEN3SYS XT series, this insert features a 140-degree point angle optimized for positive engagement and reduced thrust in demanding production environments. The AM300 PVD coating improves wear resistance and extends tool life across high-cycle drilling operations. At 1-5/16 inches in diameter with a Seat Size 32 shank interface, this insert fits directly into compatible GEN3SYS XT spade drill holders used by machinists and toolroom professionals in metalworking and manufacturing settings.

This insert is suited for drilling into steel and hard materials in production machining environments, including CNC machining centers, drill presses, and transfer line applications. The GEN3SYS XT series targets high-penetration-rate drilling where insert interchangeability and repeatable hole quality are priorities. It is used by machinists and tool-crib technicians who require consistent performance across production runs without full body replacement.

Key Features

• 1-5/16 inch diameter with Seat Size 32 interface for GEN3SYS XT holders
• 140-degree point angle reduces thrust and improves centering in steel and hard materials
• C1 (K35) carbide grade engineered for strength in demanding cut conditions
• AM300 PVD coating enhances wear resistance and thermal stability
• Fractional inch measurement system for direct compatibility with inch-standard toolholders
• Primary workpiece material codes P and H covering steel and hard material classifications

Compatibility

Designed for use with GEN3SYS XT series spade drill holders accepting a Seat Size 32, 1-5/16 inch diameter insert. Primary workpiece materials are steel and hard material, corresponding to material codes P and H.

Installation Notes

Installation should be performed by qualified machinists or toolroom technicians familiar with spade drill insert systems. Ensure the holder is fully secured in the spindle and all machine power is off or in a locked-out state before seating or removing the insert. Inspect the holder seat for chips or debris before installation to ensure proper insert seating and avoid runout. Follow the tool manufacturer's recommended clamping torque procedure for the GEN3SYS XT holder series.
