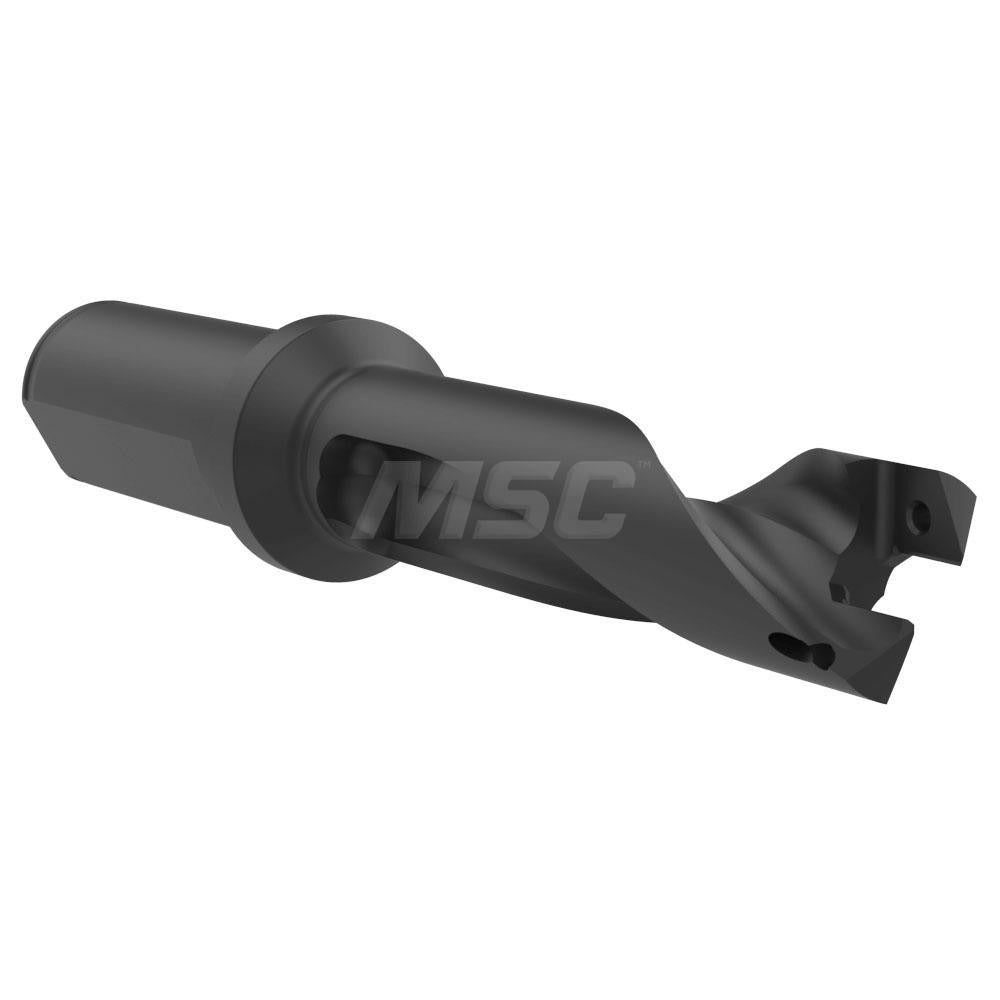

Allied Machine 60322S-100F Replaceable-tip Drill 22-23.81mm

Product Description

The ALLIED MACHINE AND ENGINEERING 60322S-100F is a replaceable-tip drill body designed for precision hole-making in metal and industrial workpiece applications. It accepts interchangeable drill tips spanning a diameter range of 22 to 23.81 mm (0.8661 to 0.9374 inches), allowing a single body to cover multiple bore sizes with compatible tip inserts. The body features a 1-inch straight-cylindrical shank and delivers a maximum drill depth of 2.8281 inches, making it suited for through-hole and blind-hole drilling operations requiring consistent dimensional accuracy. The GEN3SYS toolholder style and proprietary coating on the body support extended tool life in production environments. Installed by machinists and tool-room technicians, this drill body is built around a 3xD depth-to-diameter ratio.

This drill body is intended for use in CNC machining centers, drill presses, and turning centers equipped with toolholders compatible with the GEN3SYS system. It is appropriate for production drilling in general machining, automotive, aerospace, and fabrication environments where replaceable-tip technology reduces tooling cost per hole versus solid carbide drills. The straight-cylindrical shank interfaces directly with standard collet chucks, hydraulic chucks, or shrink-fit holders sized for a 1-inch shank diameter. The shank end includes a 1/8-inch coolant hole thread for optional coolant feed connection at the shank side.

Key Features

• Diameter range of 22 to 23.81 mm accommodates multiple tip sizes on a single body
• 3xD drill depth-to-diameter ratio with a maximum drill depth of 2.8281 inches
• 1-inch straight-cylindrical shank for broad toolholder compatibility
• GEN3SYS toolholder style for secure tip seating and repeatable runout
• Proprietary body coating for wear resistance and extended service life
• 1/8-inch shank-end coolant hole thread for coolant feed integration

Compatibility

Designed for use with ALLIED MACHINE AND ENGINEERING GEN3SYS Series 22 replaceable drill tips. Tip inserts covering the 22 to 23.81 mm diameter range must be sourced separately and matched to this body series.

Installation Notes

Installation and tip changes should be performed by qualified machinists following the machine tool manufacturer lockout and energy-isolation procedures before any tooling work. Verify shank-to-holder fit and confirm the toolholder bore is clean and free of chips before inserting the shank. Torque tip-retention hardware only with the fastener tools specified by ALLIED MACHINE AND ENGINEERING for the GEN3SYS system - do not substitute drivers. Confirm coolant connection integrity at the shank-end thread before resuming coolant-through operation.
