Allied Machine 4C2ZP-0015 Spade Drill Insert 15/32 in Carbide

Product Description

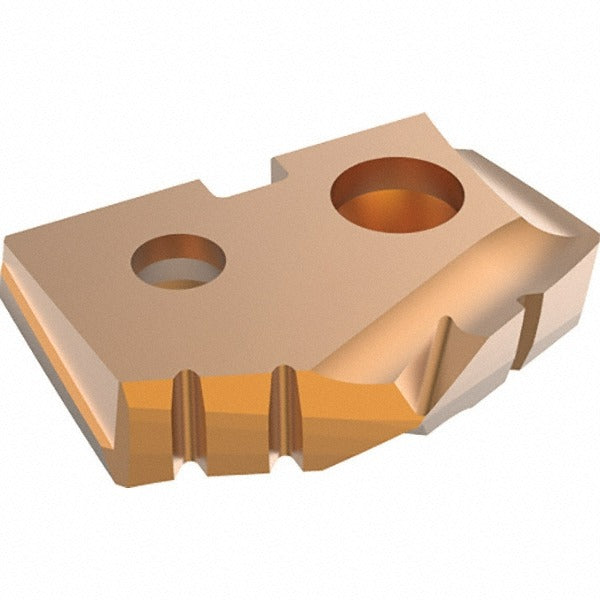

The ALLIED MACHINE AND ENGINEERING 4C2ZP-0015 is a solid carbide spade drill insert designed for high-performance hole-making in demanding machining applications. It features a 15/32 inch diameter, a 132-degree point angle, and an AM300 PVD coating for extended tool life. The insert seats in a Seat Size Z holder and belongs to the GEN2 T-A series. Machining professionals and tooling specialists install this insert into compatible spade drill bodies for use on CNC machining centers, lathes with live tooling, and manual drill presses requiring precision boring.

This insert is suited for drilling operations in stainless steel, cast iron, non-ferrous metals, super-alloys, and titanium. Its manufacturer grade C2 (K20) carbide substrate and AM300 PVD coating make it appropriate for production environments where tool wear and surface finish are critical. The GEN2 T-A series is a common platform in industrial job shops and manufacturing facilities running interrupted cuts or difficult-to-machine alloys. Sold individually as a single replacement insert.

Key Features

• 15/32 inch diameter with a 132-degree point angle for precise entry geometry
• Solid carbide construction, manufacturer grade C2 (K20), for hardness and wear resistance
• AM300 PVD coating provides thermal and abrasion resistance across a broad range of workpiece materials
• Seat Size Z interface for secure, repeatable seating in compatible GEN2 T-A spade drill bodies
• Rated for stainless steel, cast iron, non-ferrous metals, super-alloys, and titanium (material codes M, K, N, S)
• Compact insert profile: 1.5 inches length, 1.5 inches width, 0.38 inches height, 0.0938 inches thickness

Compatibility

Designed for use with GEN2 T-A series spade drill bodies accepting a Seat Size Z insert. Verify holder seat size and series before ordering to confirm fitment.

Installation Notes
