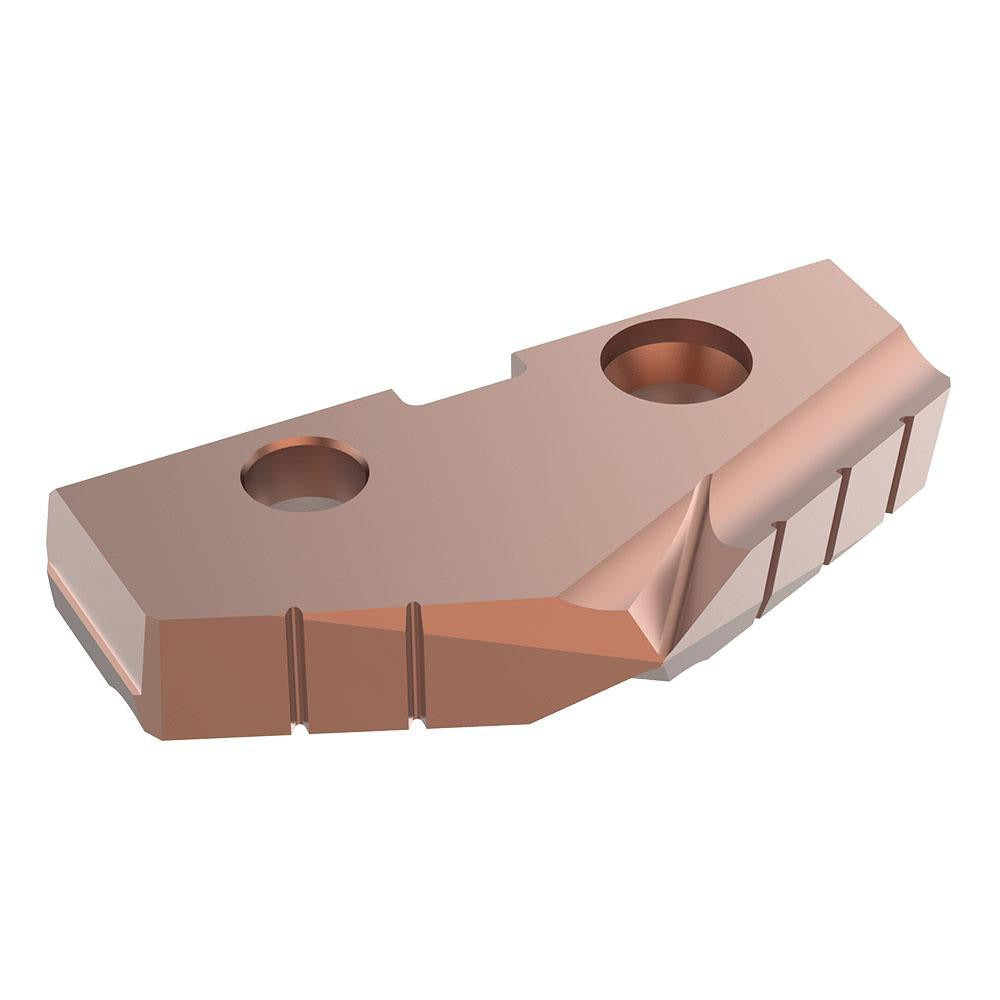

Allied Machine 453H-37 Spade Drill Insert 37mm Cobalt GEN2 T-a

Product Description

The ALLIED MACHINE AND ENGINEERING 453H-37 is a cobalt spade drill insert engineered for high-performance hole-making in demanding machining environments. Sized at 37 mm in diameter with a 132-degree point angle, this insert fits Seat Size 3 holders in the GEN2 T-A spade drill system. The AM200 PVD coating is applied to the cobalt substrate, improving wear resistance and tool life across a range of workpiece materials. At 0.25 inches thick and 0.1 pounds, it is a compact, precision-ground component intended for installation by machinists and tooling specialists in production and job-shop settings.

This insert is designed for use in metal-cutting operations where consistent hole geometry and extended tool life are required. Its primary workpiece material compatibility covers steel, stainless steel, cast iron, super-alloys, titanium, and hard materials, making it a versatile choice for aerospace, automotive, oil and gas, and general metalworking applications. It is packaged individually and sold as a single-unit replacement insert for the GEN2 T-A spade drilling system.

Key Features

• 37 mm cutting diameter with a 132-degree point angle for accurate entry and chip control
• Cobalt insert material provides toughness and resistance to heat in demanding cuts
• AM200 PVD coating enhances wear resistance and extends tool life
• Seat Size 3 designation ensures direct compatibility with matching GEN2 T-A spade drill holders
• Rated for steel (P), stainless steel (M), cast iron (K), super-alloys and titanium (S), and hard materials (H)
• Lightweight at 0.1 pounds with a 0.25-inch insert thickness for precise seating

Compatibility

Designed for use with GEN2 T-A series spade drill holders requiring a Seat Size 3 insert. Compatible with primary workpiece material classifications P, M, K, S, and H as defined by ISO cutting material codes.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spade drill holder is removed from the spindle and the machine is fully powered down and locked out before replacing the insert. Seat the insert fully against the holder pocket and torque the clamp screw according to the holder manufacturer's specifications. Inspect the seating surface and clamp screw threads for wear or damage before each insert change.
