Allied Machine 437T-0324 Spade Drill Insert 3-3/4 in Hss Tin

Product Description

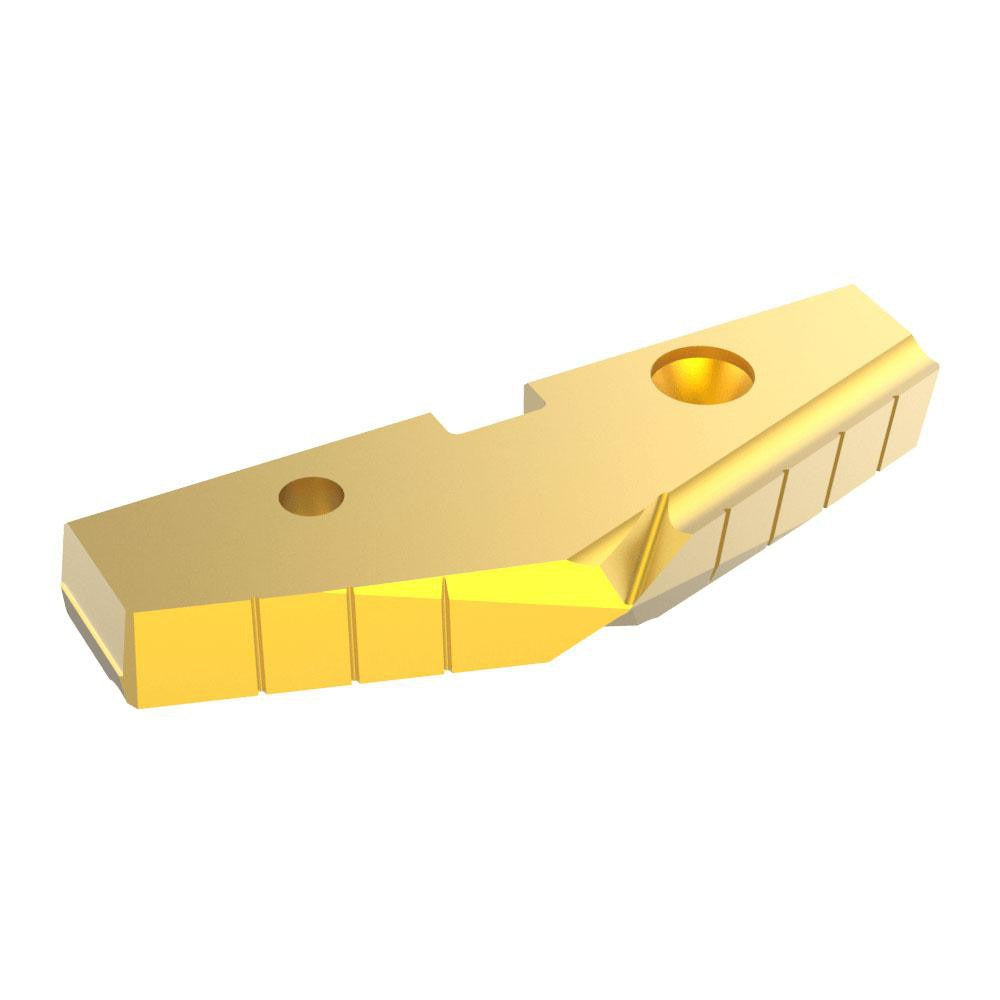

The ALLIED MACHINE AND ENGINEERING 437T-0324 is a spade drill insert designed for high-production drilling operations in metalworking environments. It measures 3-3/4 inches in diameter and seats in a Size 7 holder, making it suitable for large-diameter hole-making applications. The insert is manufactured from High Speed Steel (HSS) and features a Physical Vapor Deposition (PVD) TiN (titanium nitride) coating that extends cutting life and reduces friction at the cutting edge. The 144-degree point angle provides aggressive entry geometry suited for flat-bottomed or through-hole drilling. This insert belongs to the GEN2 T-A series and weighs 0.1 pounds. Machinists and tool-room technicians working in production shops are the primary installers.

The 437T-0324 is suited for drilling into steel, cast iron, and non-ferrous metals, covering ISO material groups P, K, and N. Typical applications include CNC machining centers, turret lathes, and drill presses where large-diameter spade drilling is required. The GEN2 T-A series system uses a replaceable insert design, allowing the cutting head to be swapped without replacing the full holder assembly, which reduces tooling cost in high-cycle operations. This insert is appropriate for both roughing and general-purpose hole-making in job shops and production facilities.

Key Features

• 3-3/4 inch diameter cutting edge for large-bore drilling applications
• High Speed Steel substrate provides toughness in interrupted cuts and tough workpiece materials
• PVD TiN coating reduces friction, extends tool life, and improves chip evacuation
• 144-degree point angle delivers aggressive, stable entry geometry
• GEN2 T-A series design allows insert replacement without changing the holder body
• Compatible with steel, cast iron, and non-ferrous metals (ISO P, K, N material groups)

Compatibility

Designed for use with ALLIED MACHINE AND ENGINEERING GEN2 T-A series spade drill holders accepting a Size 7 seat. Compatible with primary workpiece materials including steel (ISO P), cast iron (ISO K), and non-ferrous metals (ISO N).

Installation Notes

Installation is performed by machinists or tooling technicians. Ensure the machine spindle is fully stopped and the tool holder is secured in the turret or spindle before seating or removing the insert. Use the appropriate torque wrench and insert screws specified by the holder manufacturer when clamping the insert. Inspect the seat and clamping surfaces for chips or debris before each insert change to maintain runout accuracy.
