Allied Machine 2T1-3SR Spade Drill Spare Parts Package

Product Description

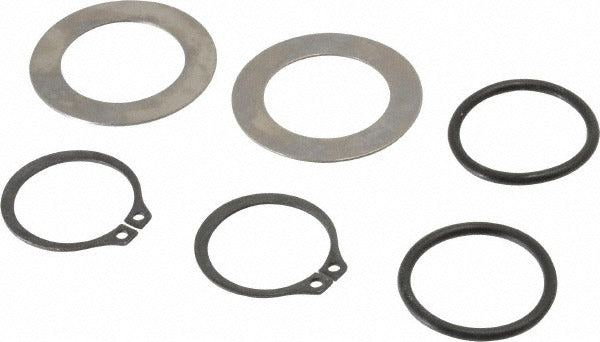

The ALLIED MACHINE AND ENGINEERING 2T1-3SR is a spare parts package designed for T-A Series indexable spade drills. The package contains the small but critical hardware components that keep spade drill bodies seated, sealed, and functioning under cutting loads. Each package includes two O-rings, two snap rings, and two thrust washers. These components are standard service parts for T-A Series spade drill holders and are replaced during routine maintenance or after heavy-duty drilling cycles to restore proper insert retention and alignment. Machinists and tool crib technicians working with T-A Series drill bodies will keep this package on hand as standard consumable stock.

This spare parts package is intended for use with T-A Series indexable spade drill bodies in metalworking and machining environments. It is applicable to holders designated 2T-3SR and 2T-3SRM. The package is suited for production shops, job shops, and maintenance departments running spade drilling operations in steel, cast iron, and similar ferrous materials where high-cycle use puts regular wear on retaining and sealing hardware.

Key Features

• Includes two O-rings, two snap rings, and two thrust washers per package
• Designed for T-A Series indexable spade drill bodies
• Compatible with 2T-3SR and 2T-3SRM drill holders
• Lightweight package at 0.03 pounds for easy storage in tool cribs
• Sold as a single package with a minimum order quantity of one

Compatibility

Designed for use with T-A Series indexable spade drill holders 2T-3SR and 2T-3SRM as specified by the manufacturer.

Installation Notes

Installation and replacement of O-rings, snap rings, and thrust washers should be performed by a qualified machinist or tool crib technician familiar with indexable spade drill body service procedures. Ensure the drill body is fully removed from the machine spindle and all rotational energy has been stopped before disassembling the holder. Use appropriate snap ring pliers for snap ring removal and installation to avoid distorting the rings or damaging the drill body bore. Follow the manufacturer's service documentation for correct component orientation and seating.
