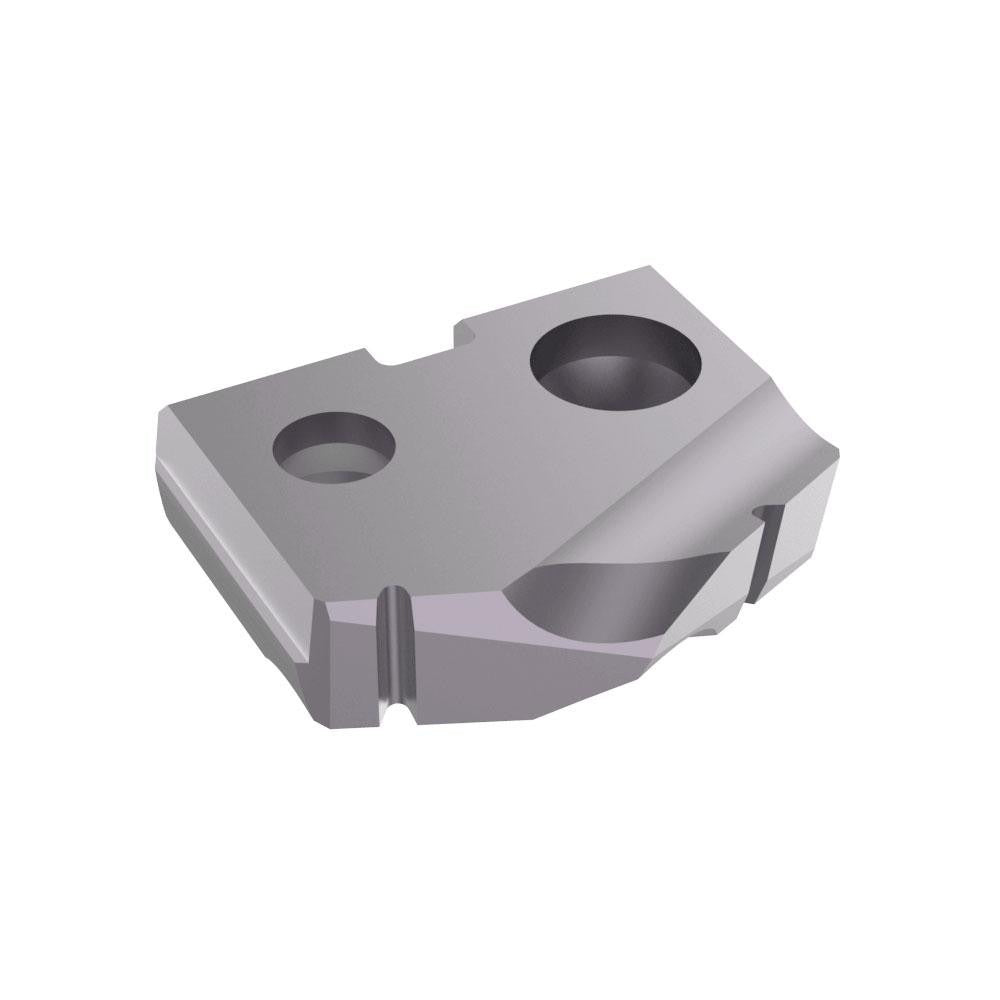

Allied Machine 180A-0020 Spade Drill Insert 5/8 in Cobalt

Product Description

The ALLIED MACHINE AND ENGINEERING 180A-0020 is a cobalt spade drill insert designed for high-performance hole making in demanding machining applications. Part of the T-A Series, this insert measures 5/8 inch in diameter with a 132-degree point angle and a 0.125-inch thickness. The TiAlN PVD coating provides thermal resistance and extended tool life under high cutting speeds. It seats into Seat Size 0 holders and is intended for use by machinists and tooling specialists working on metal fabrication and production drilling operations.

This insert is suited for drilling steel, stainless steel, cast iron, super-alloys, titanium, and hard materials, covering ISO workpiece material codes P, M, K, S, and H. It fits typical production environments where consistent hole geometry and insert interchangeability are priorities. The T-A Series platform is a modular system that allows insert changes without removing the holder from the machine, making it a practical choice for high-volume drilling cells and job shops alike.

Key Features

• 5/8 inch diameter with 132-degree point angle for accurate entry and chip formation
• Cobalt substrate provides toughness and heat resistance at elevated cutting speeds
• TiAlN PVD coating extends tool life when drilling ferrous and hard materials
• Seat Size 0 compatibility fits standard T-A Series holders
• 0.125-inch insert thickness for dimensional consistency across replacements
• Rated for steel, stainless steel, cast iron, super-alloys, titanium, and hard materials

Compatibility

Designed for use with T-A Series Seat Size 0 spade drill holders. Compatible workpiece materials include steel, stainless steel, cast iron, super-alloys, titanium, and hard materials (ISO codes P, M, K, S, H).

Installation Notes

Insert seating and torquing should be performed by a qualified machinist following the holder manufacturer's guidelines. Ensure the holder is secured and the machine is fully powered down before changing inserts. Inspect the insert seat for chips or contamination before installing a new insert. Use the appropriate insert screw and driver specified for the T-A Series holder to avoid seat damage.
