Allied Commercial 21C69 T-Series ELP Heat Pump Split System Unit 7.5 ton

Product Description

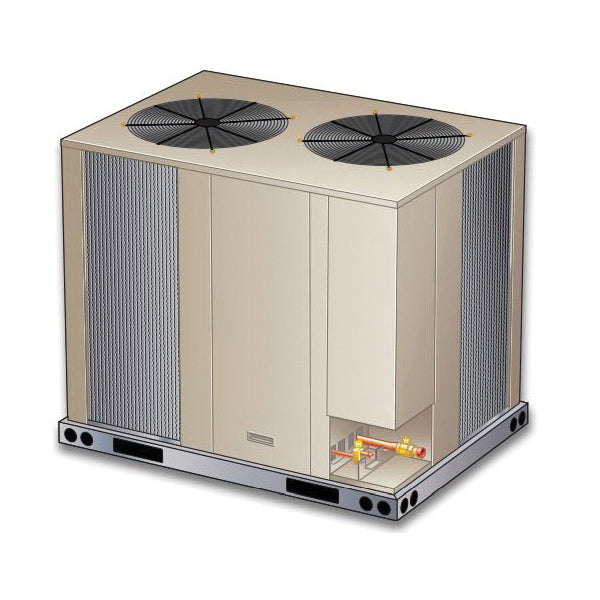

The Allied Commercial 21C69 is a T-Series ELP Heat Pump Split System Unit with a nominal capacity of 7.5 tons. This unit provides efficient heating at 80000 Btu/hr and cooling at 89000 Btu/hr. It runs on a power source of 208/230 VAC, 3 phase, 60 Hz.

• Proven scroll compressors for smooth operation
• Easy-access panels for maintenance
• Single refrigeration circuit

Product Highlights

This heat pump features advanced technology that ensures energy efficiency and performance in various conditions.

Product Information

Standard Information

• Brand: Allied Commercial
• Part #: K1199

Technical Specifications

• COP Rating: 2.25 to 3.3
• Compressor Type: 2-Stage Scroll
• Cooling Capacity: 89000 Btu/hr
• Heating Capacity: 80000 Btu/hr
• Nominal Capacity: 7.5 ton
• EER Rating: 11.2
• IEER Rating: 13.6
• Dimensions: 61 inches L x 43 inches W x 50 inches H
• Sound Level: 85 dB
• Refrigerant Type: R-410A
• Power Source: 208/230 VAC, 3 ph, 60 Hz
• Suction Line Size: 5/8 inches
• Discharge Line Size: 1-1/8 inches
• Material: Heavy Gauge Pre-Painted Steel
• Motor HP: 1/3 hp
• Motor RPM: 1075 rpm
• Flow Rate: 8300 cfm
• Fuse Size: 60 A
• Drive Type: Dual Direct
