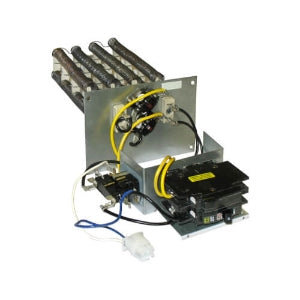

Allied Air WBC2002BV Electric Heater Kit 20 Kw 208/230V

Product Description

The ALLIED AIR WBC2002BV is an electric heater kit with an integrated circuit breaker designed for forced-air heating applications in residential and light commercial settings. Rated at 20 kW and compatible with 208/230-volt, single-phase, 60 Hz power supplies, this kit provides supplemental or primary electric heat when installed inside a compatible air handler. The unit measures 7.0 inches in height and 11.38 inches in width, making it a compact accessory for field installation into the air handler cabinet. Licensed HVAC technicians handle installation as part of a system commissioning or heating upgrade project.

This heater kit is designed for use with the BCE5V48 and BCE5V60 Enhanced Air Handler models. It is suited for residential applications where electric resistance heat is the primary or backup heat source. The built-in circuit breaker simplifies the electrical protection side of the installation, eliminating the need for a separate breaker component in the heater circuit. It is a field-installed accessory added during initial system setup or as an upgrade to an existing air handler already in service.

Key Features

• 20 kW heating output for robust electric resistance heat delivery
• Integrated circuit breaker included, reducing field wiring complexity
• 208/230V single-phase, 60 Hz rating covers common residential electrical services
• Compact form factor at 7.0 inches tall and 11.38 inches wide for air handler cabinet fit
• No cooling function — dedicated heating accessory for air handler pairing

Compatibility

Designed for use with the BCE5V48 and BCE5V60 Enhanced Air Handler models from Allied Air.

Installation Notes

Installation must be performed by a licensed HVAC technician following applicable local codes and the NEC. Disconnect and lock out all electrical power to the air handler before installing or servicing the heater kit. Verify that the supply voltage and phase configuration at the unit match the 208/230V, 1-phase rating of this kit before energizing. Do not exceed the air handler manufacturer's maximum allowable heater kit capacity as specified in the equipment documentation.

Technical Specifications

• Heating Capacity: 20 kW
• Voltage Rating: 208/230 volts
• Number of Phases: 1-Phase
• Frequency Rating: 60 Hz
• Height: 7.0 inches
• Width: 11.38 inches
• Cooling Capacity: None
• Accessory Type: Electric Heat Kit

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: WBC2002BV
