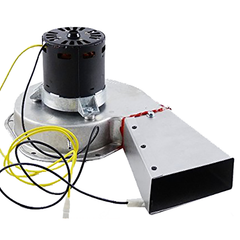

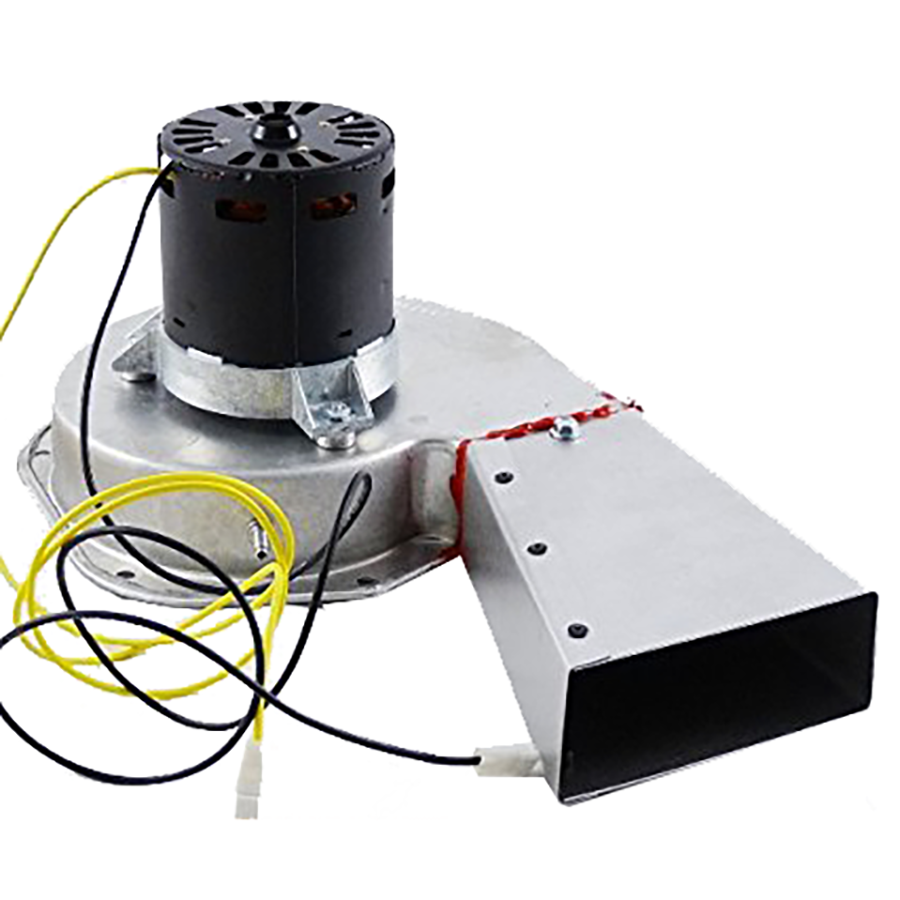

Allied Air 52M60 Furnace Blower Assembly Inducer

Product Description

The ALLIED AIR 52M60 is a furnace blower assembly inducer designed to move combustion air through the heat exchanger and flue passages of a gas furnace. Operating on 230 volts AC at 60 Hz single-phase power, this assembly draws 0.75 amps and runs at 3060 RPM with a 1/25 HP motor. It manages draft pressure to maintain proper combustion and venting during heating cycles. Licensed HVAC technicians install this component during maintenance, repair, or system restoration when the original inducer assembly fails or shows signs of degraded performance.

This blower assembly is suited for residential gas furnace applications where a 230-volt single-phase inducer is required. It is installed in the inducer housing at the heat exchanger outlet and works in conjunction with the furnace control board to sequence combustion airflow before and after burner operation. Typical applications include forced-air gas furnace service in residential and light commercial settings.

Key Features

• 230 VAC 60 Hz single-phase operation for compatibility with standard residential electrical supply
• 3060 RPM motor speed delivers consistent draft for reliable combustion airflow
• 1/25 HP motor rating appropriate for inducer duty in gas furnace applications
• 0.75-amp draw supports low-load electrical design in furnace control circuits
• Complete blower assembly format simplifies replacement versus component-level repair

Compatibility

Designed as an OEM-style replacement inducer blower assembly for residential gas furnaces requiring a 230-volt single-phase inducer motor assembly.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all electrical power and shut off the gas supply to the furnace before beginning any service work. The inducer assembly must be properly seated and sealed to the flue collar to prevent combustion gas leakage. Verify the replacement assembly matches the original wiring configuration and that the pressure switch tubing is reconnected correctly before restoring power.

Technical Specifications

• Voltage: 230 VAC
• Frequency: 60 Hz
• Phase: 1-Phase
• Horsepower: 1/25 HP
• Amperage: 0.75 amps
• Motor Speed: 3060 RPM
• Type: Blower Assembly
• Application: Furnace
• Weight: 7.0 pounds

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 52M60
