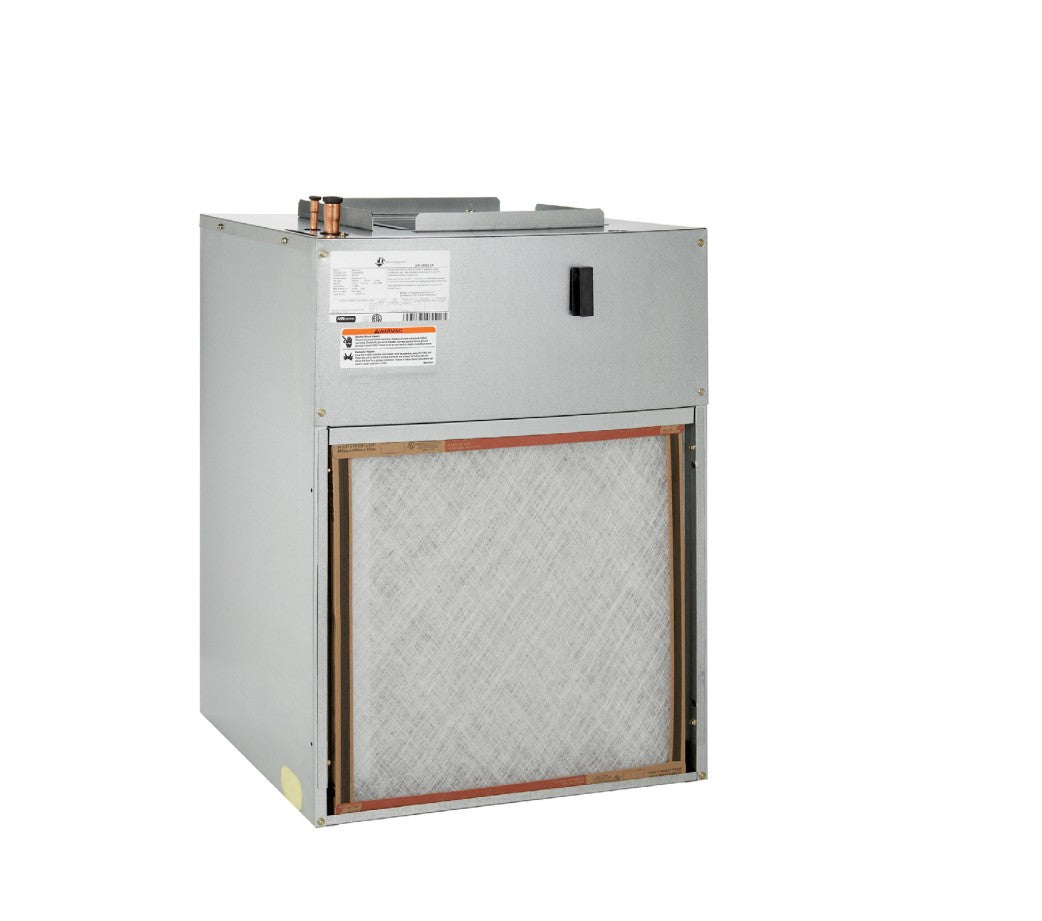

Allied Air 28F21 Wall Mount Air Handler 7 kW

Product Description

The Allied Air 28F21 Wall Mount Air Handler features a nominal capacity of 2.0 Ton and uses R-454B refrigerant. It includes a 7 kW heat kit and operates on a 208-230V / 1 Ph / 60 Hz power supply. The unit's cabinet is constructed from galvanized steel with anti-microbial drain pans. It also features Omniguard Total Corrosion Protection.

• Features Omniguard Total Corrosion Protection with a tube-and-fin coil design.
• Includes a factory-installed Refrigerant Detection System (RDS) for leak monitoring.
• Built with a sealed cabinet that limits air leakage to less than 2%.

Product Highlights

Wall mount air handler with corrosion protection, refrigerant detection, and efficient airflow.

Product Information

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 28F21

Technical Specifications

• Brand: Allied Air Enterprises
• Nominal Capacity: 2.0 Ton
• Refrigerant Type: R-454B
• Motor Type: PSC Motor (Single-Stage)
• Heat Kit: 7 kW
• Power Supply: 208-230V / 1 Ph / 60 Hz
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Airflow Rate: Approx. 1054 cfm
• Cabinet Construction: Galvanized steel with anti-microbial drain pans
