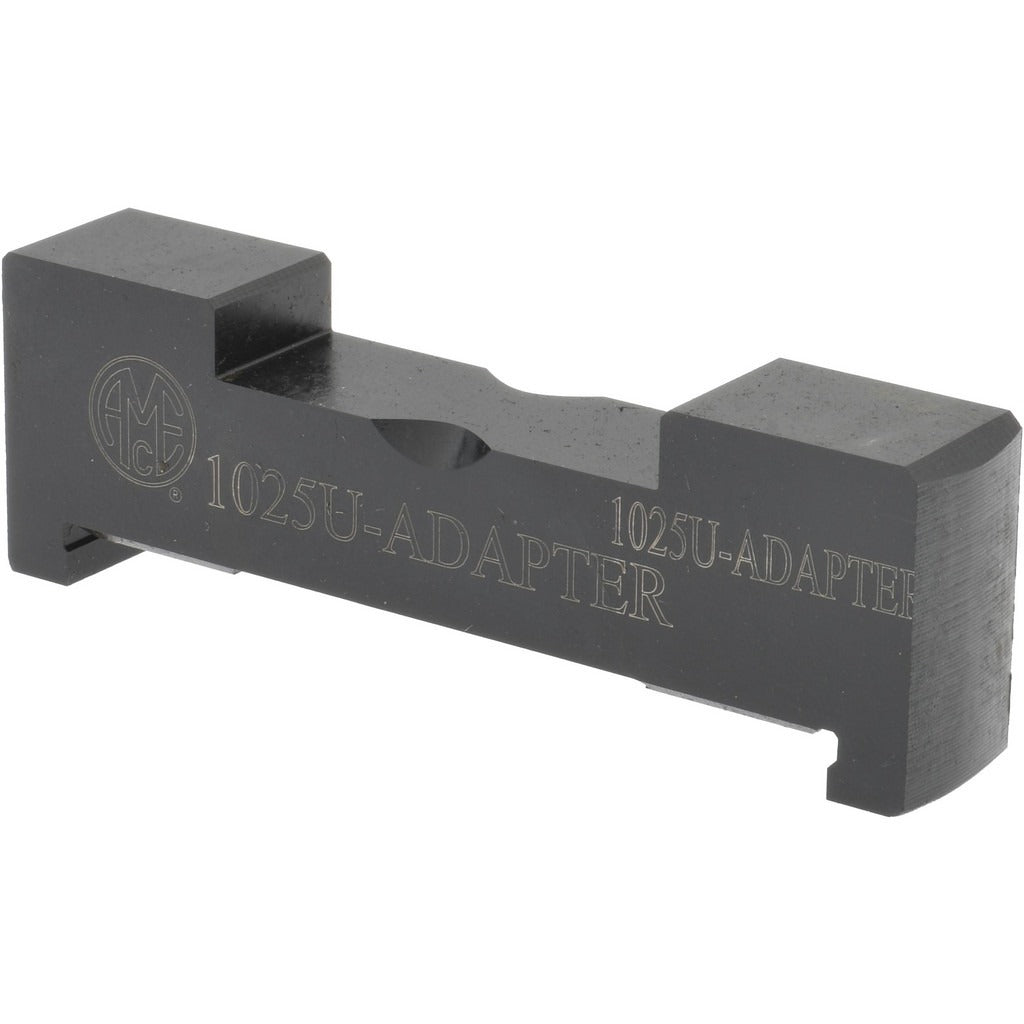

Allied 1025U-ADAPTER Spade Drill Adapter Series E

Product Description

The ALLIED MACHINE AND ENGINEERING 1025U-ADAPTER is a Series E spade drill adapter designed to connect spade drill inserts to compatible toolholders and boring bars in metalworking and machining operations. This adapter serves as the interface between the cutting insert and the drive system, allowing spade drill inserts to be mounted securely for hole-making operations in ferrous and non-ferrous materials. It is used by machinists, tool and die makers, and CNC operators working in production or job-shop environments where spade drilling is the preferred method for drilling large-diameter holes.

The 1025U-ADAPTER is suited for use in CNC machining centers, lathes, and manual drilling setups where spade drill tooling is employed. Spade drill adapters in the Series E line are typically used in industrial and manufacturing environments for through-hole and blind-hole applications across a range of materials. This part is sold individually and is intended for direct replacement or new tooling setups requiring a Series E adapter.

Key Features

• Series E designation for compatibility with corresponding spade drill insert and holder systems
• Single-piece adapter provides a secure mechanical connection between insert and drive
• Sold as an individual unit, allowing targeted replacement without purchasing a complete tooling kit
• Designed for integration into standard spade drill tooling setups on CNC and manual equipment

Compatibility

Designed as an OEM-style replacement or tooling addition for Series E spade drill systems requiring a dedicated adapter interface.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with spade drill tooling systems. Ensure all machine spindles and drives are fully powered down and locked out before mounting or removing the adapter. Consult the toolholder and insert manufacturer documentation for proper seating and retention procedures. Follow applicable shop safety standards and machine tool guidelines during installation and changeover.
