Alliance XF150PRO Transformer 150 W

Product Description

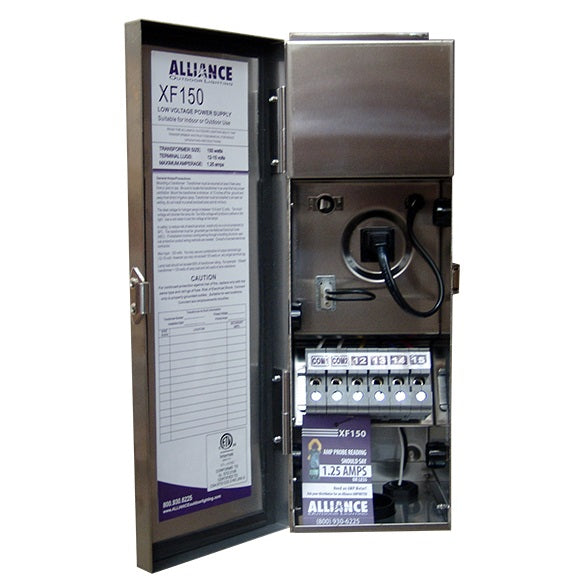

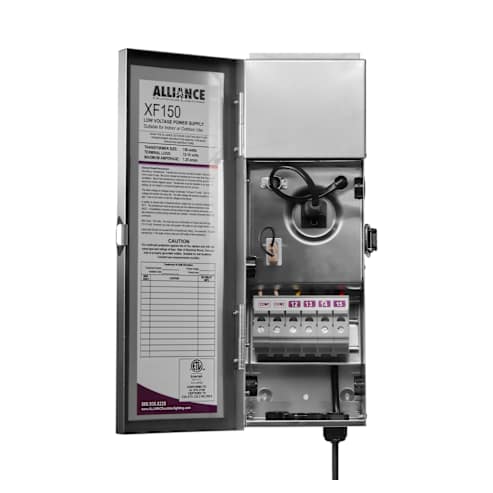

The Alliance XF150PRO transformer is the heart of a low-voltage outdoor lighting system. This rugged professional-grade multi-tap transformer sets the standard for ease of installation and adaptability to standard and app-based controls packaged with Alliance's iTimerPRO.

• Fully-potted, insulated, single-core transformer
• Easy on/off, secondary breaker switches on each common tap
• Two common lug terminals

Product Highlights

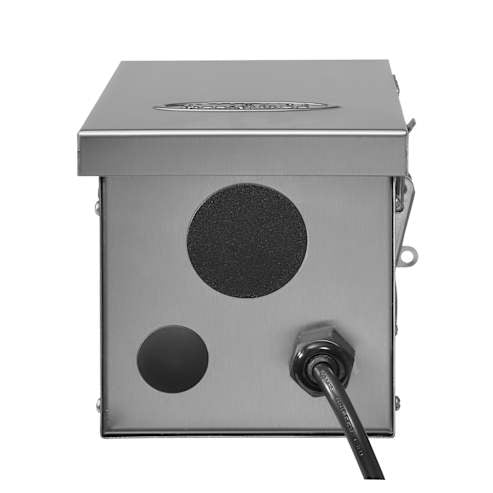

Features include a heavy-duty stainless-steel cabinet with integrated mounting bar, lockable, and a removable bottom panel with 5 knockouts for wire connections. ETL tested, in conformance to ANSI/UL 1838.

Product Information

Standard Information

• Brand: ALLIANCE
• Manufacturer Part Number: XF150PRO

Technical Specifications

• Wattage: 150 W
• Brand: Alliance Outdoor Lighting Inc
• Material: Stainless Steel
• Max Voltage: 15 V
• Series: XF150
• Manufacturer: Alliance Outdoor Lighting
• Application: Transformer, Accessories
• Technology: Electromagnetic
• AMP Rating: 1.5 A
• Electrical Connection: 5 ft. Power Cord
• Housing Material: Stainless Steel
• Power Rating: 150 W
• Primary Voltage: 120 V
• Voltage: 12/13/14/15 V
• Part Number: AOLXF150PRO
• MFG Number: XF150PRO
• Max Amperage (Load): 1.25 amps
• Secondary Voltage: 12-18 volts*
