Alliance TF150 Multiple Tap Transformer 150-Watt (Wall Mount)

Product Description

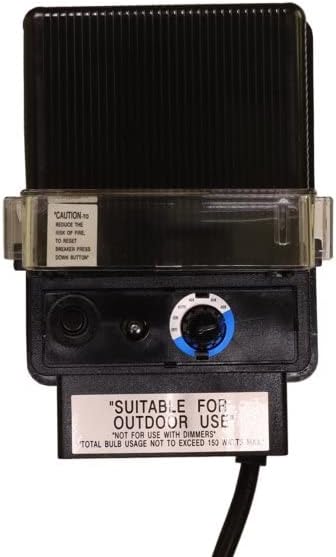

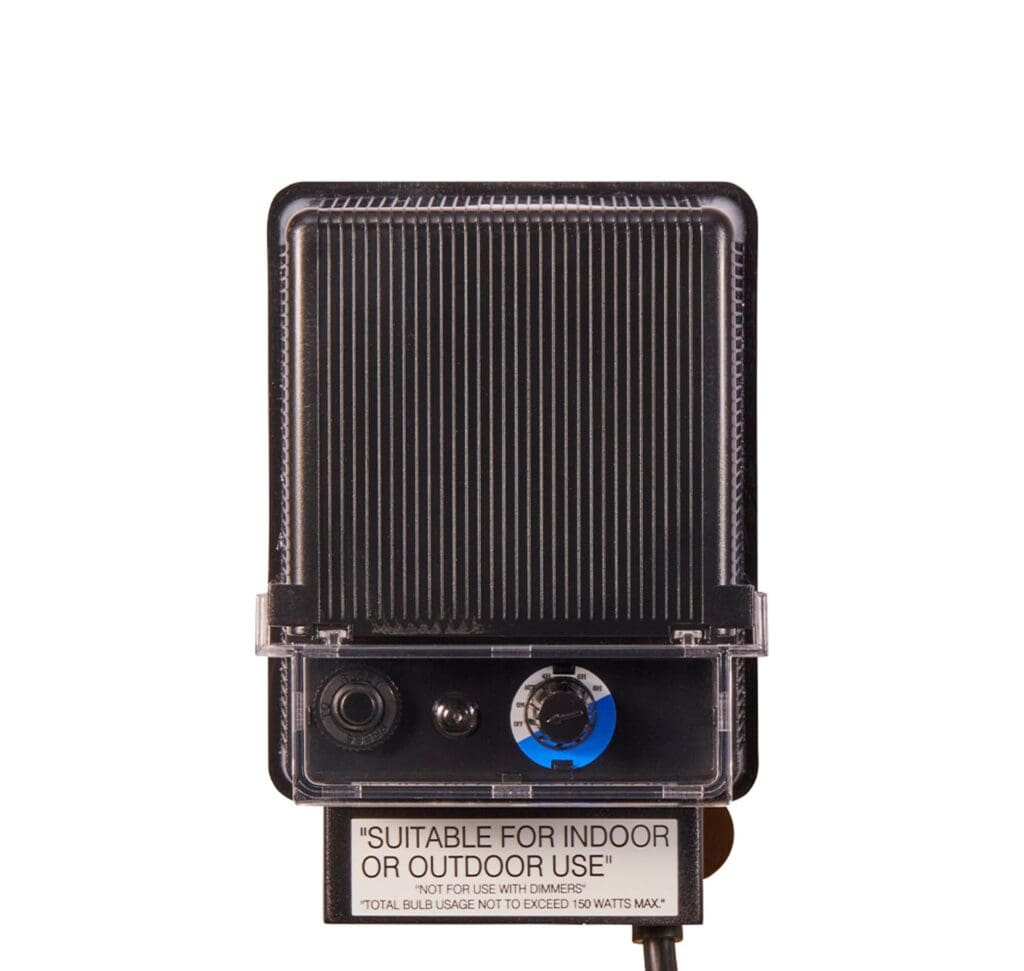

The Alliance TF150 is a 150-watt multiple tap transformer for indoor or outdoor low-voltage landscape lighting. It accepts 120 VAC, 60 Hz primary input and delivers a 12 VAC secondary with multiple voltage taps, providing up to 150 VA output. The unit includes a built-in photocell (dusk-to-dawn) and timer, corded electric power, and a wall-mount stainless steel housing.

• 150 W (150 VA) rating; 120 VAC primary (60 Hz) to 12 VAC secondary with multiple voltage taps and 12.5 A max output
• Built-in photocell (dusk-to-dawn) and built-in timer for automated low-voltage lighting control
• Wall-mount design with stainless steel housing and corded electric power; UL listed, DOE and CEC compliant; dimensions 6.75 x 4.25 x 3.25 inches

Product Highlights

150 W multiple-tap low-voltage transformer with integrated photocell and timer for landscape lighting

Product Information

Standard Information

• Brand: ALLIANCE
• Manufacturer Part Number: TF150

Technical Specifications

• Brand: Alliance
• MPN: TF150
• Type: Multiple tap low-voltage transformer / power supply
• Power Rating: 150 W (150 VA)
• Primary Voltage: 120 VAC
• Primary Frequency: 60 Hz
• Primary Current Rating: 1.25 A (approx.)
• Secondary Voltage: 12 VAC
• Available Voltage Taps: Multiple taps (manufacturer lists 12 taps)
• Maximum Output: 150 VA
• Max Output Current: 12.5 A (150 VA / 12 VAC)
• Number of Phases: Single-phase
• Turns Ratio: 10:1 (120V to 12V)
• Housing Material: Stainless steel
• Mounting Type: Wall mount
• Power Source: Corded electric
• Features: Built-in photocell (dusk-to-dawn); built-in timer
• Certifications: UL listed; DOE compliant; CEC compliant
• Dimensions (HxWxD): 6.75 x 4.25 x 3.25 inches
• Suitable For: Indoor or outdoor landscape lighting fixtures
