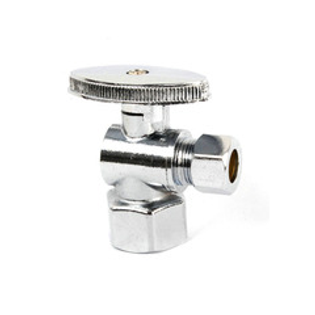

Alliance 81358PR-NL Premium 5/8-Inch x 3/8-Inch OD Compression Quarter Turn Angle Stop Valve

Product Description

The Alliance 81358PR-NL is a quarter-turn angle stop valve that provides reliable connections for water supply. It features a standard five-eighths inch compression inlet and a three-eighths inch OD compression outlet. This valve is appropriate for use in toilets, sinks, washing machines, water heaters, and dishwashers.

• Standard five-eighths inch compression inlet and three-eighths inch OD compression outlet for universal compatibility.
• Constructed from solid chrome-plated brass for durability and corrosion resistance.
• Lead-free and meets NSF/ANSI 61/372, CSA, Truesdale, and UPC standards.

Product Highlights

The quarter-turn handle allows for easy on/off operation. The valve also has self-lubricating PTFE seats and double O-rings to prevent leaks effectively.

Product Information

Standard Information

• UPC: 804595989234
• GTIN: 00804595989234

Technical Specifications

• Inlet Connection Size: 5/8 inch
• Outlet Connection Size: 3/8 inch
• Material: Chrome Plated Brass
• Valve Type: Quarter Turn Angle Stop Valve
• Maximum Operating Pressure: 100 PSI
• Normal Working Temperature: 120°F
