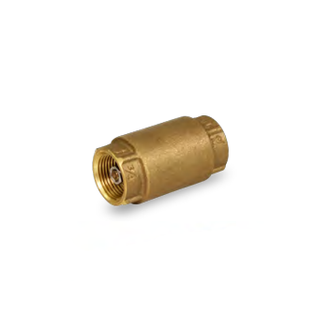

ALLIANCE 150T034-NL 3/4 Threaded Spring Loaded Check Valve Lead Free

Product Description

The ALLIANCE 150T034-NL is a 3/4 inch threaded spring-loaded check valve designed for low-pressure domestic potable water systems. Made from lead-free brass, this valve is effective in preventing backflow of liquids. It can be installed in both horizontal and vertical configurations, offering versatility for different plumbing needs.

• Prevents backflow of fluids in plumbing systems.
• Constructed from lead-free brass for safe drinking water.
• Compatible for installation in horizontal or vertical positions.

Product Highlights

This check valve is ideal for a variety of applications, operating efficiently under low pressure.

Product Information

Standard Information

• UPC: 804595103074

Technical Specifications

• Inlet Type: Threaded
• Outlet Type: Threaded
• Application: Low Pressure, Domestic Potable Water Systems
• Special Features: Lead-Free
• Material: Brass
• Diameter: 3/4 inch
• Cold Working Pressure (CWP): 200 psi Non Shock
• Temperature Rating: 180°F
• Threaded Ends Comply: ANSI B2.1
• Solder Ends Comply: ANSI B16.18
• WSP Rating: 200 psi
• WOG Rating: 200 psi
