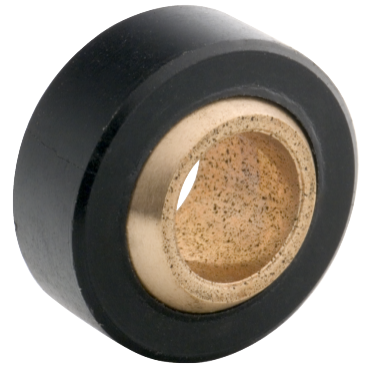

Alinabal NBA-5-A NBA Series Spherical Plain Bearing

Product Description

The Alinabal NBA-5-A is a spherical plain bearing designed for various applications. This product features a spherical diameter of 0.558 inches and an outer diameter of 0.75 inches. It is constructed from high-quality materials to ensure durability and effective performance in a range of industrial settings.

• 5/16 inch inner diameter and 3/4 inch outer diameter
• Unsealed design for easy lubrication
• Self-lubricating properties for reduced maintenance

Product Highlights

This bearing is suitable for diverse applications where stability and reliability are critical. Its spherical design allows for angular misalignment and easy movement in machinery.

Product Information

Standard Information

• Brand: Alinabal
• Part Number: 101564496

Technical Specifications

• I.D.: 5/16 inches
• O.D.: 0.75 inches
• Weight: 0.25 LB
• Enclosure: Unsealed
• Ball Material: Sintered Bronze, Oil Impregnated
• Insert Material: NYLOY
• Inner Ring Width: 3/8 inches
• Outer Ring Width: 0.281 inches
• Static Load Rating [Max]: 1170 lbf
• Outer Race Material: 52100 Steel
• Self-Lubricating: Yes
• Spherical Diameter: 0.558 inches
