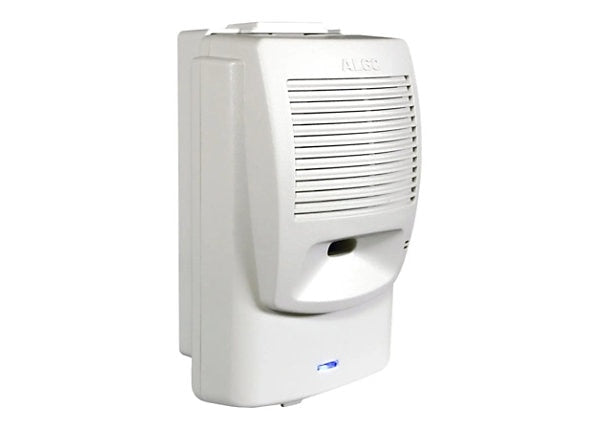

Algo 8180 IP Audio Alerter

Product Description

The ALGO 8180 SIP Audio Alerter is a wall mount IP speaker for voice paging, emergency alerting and loud ringing applications. The speaker is a fully compliant 3rd party SIP endpoint compatible with most hosted / cloud and premise-based VoIP telephone systems.

• Features wideband HD voice for high intelligibility speech.
• Offers dynamic volume control responsive to ambient noise levels.
• Supports multicast scalable configuration via user friendly web interface or auto-provisioning.

Product Highlights

This multi functional IP speaker is ideal for voice paging, emergency notification and ring alerting. PoE (IEEE 802.3af) eliminates need for local power supply, and simplifies wiring infrastructure and management.

Product Information

Standard Information

• Brand: ALGO
• Manufacturer Part Number: 8180

Technical Specifications

• Power Source: PoE (IEEE 802.3af Class 0) 48 V, 15.4 W
• Max Power (at Device): 12.95 W
• Idle Power: 2.5 W
• SIP Extensions: 50 Page (Capable of hands-free talkback) 10 Emergency Alert 10 Ring
• SIP Signalling/Transport Protocols: UDP, TCP, RTP
• Security: IEEE 802.1X
• Audio Codecs: G.711 u-law, G.711 A-law, G.722 Wideband, Opus Fullband
• RTP Multicast: Send and Receive 50 Zones
• Third Parties: RESTful API Poly Group Page Singlewire InformaCast Intrado Revolution Microsoft Teams
• Configuration: Web interface or provisioning server
• Web Interface: HTTP, HTTPS
• Provisioning: TFTP, FTP, HTTP, HTTPS DHCP Options 66, 150, 160 Reboot via SIP check-sync
• ZTP: Supported
• Supervision: Compatible with Algo Device Management Platform (ADMP), Algo 8300 IP Controller, any third party SNMP monitoring software, and RTCP
• Networking: IPv4, IPv6, DHCP, VLAN, MDNS
• Link Layer: LLDP, CDP
• QoS: DSCP
• NAT: STUN, TURN, CRLF Keep Alive, SIP Outbound
• Address Resolution: DNS, SRV Record
• Redundancy: Secondary and tertiary SIP server
• Time: NTP Server (up to four)
• SPL: 106 dBA at 1 m (120 dBA with 1186 horn)
• Microphone: Omnidirectional talkback and ambient noise monitoring
• Audio Memory & Format: 1GByte audio storage for WAV or MP3 files
• Audio Controls: Volume, AGC, Latency, LF Cut
• Anti-Feedback Delay: Cache to memory and release
• Audio Delay: Programmable 1-1000ms synchronization delay (in multicast receiver mode)
• Driver: 3.0" (7.7 cm) UV Stabilized
• Driver Response: 150-13,000 Hz (-10 dB)
• Max Audio Power: 8 W
• Audio Outputs: Speaker output 8Ohm 8W when internal speaker disabled Audio Output nominal 0dBm into 600Ohm load
• Relay Input*: Normally open or normally closed dry contact with supervision. Compatible with Algo 1202 Call Button, 1203 Call Switch, 1204 Volume Control, or EOL resistor termination
• Relay Output*: Max 30 V 50 mA (normally open)
• Speaker Output: To external 8Ohm speaker. Note that if an external speaker is connected, the internal one is deactivated.
• Audio Output: Line output level available for optional connection to external amplifier.
• Environmental: 0 to + 40 C (32 to 104 F); 10-95% RHnon-condensing. Dry indoor locations only.
• Compatible Devices: VoIP systems, SIP compatible devices
