Aladdin Metal Products al-fr1425-1 Filter Rack 14x25

Product Description

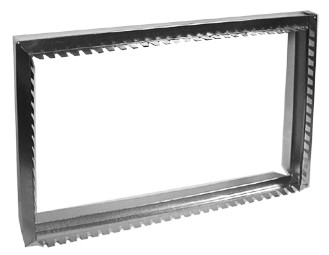

The ALADDIN METAL PRODUCTS al-fr1425-1 is a 14 x 25 inch filter rack designed to house standard 1-inch disposable or pleated air filters in forced-air HVAC systems. The rack provides a dedicated mounting point for the filter, keeping it properly seated in the airstream and preventing bypass around the filter media. HVAC technicians and installers use this type of filter rack in residential and light commercial air handler or furnace installations where a built-in filter slot is absent or needs to be added.

This filter rack fits into ductwork or at the return-air opening of an air handling unit where a 14 x 25 inch filter is specified. It is a common addition during new equipment installations or retrofits where the original equipment lacks a dedicated filter housing. Typical install locations include return-air plenums, inline duct sections, and equipment closet returns in residential forced-air systems.

Key Features

• Accepts standard 14 x 25 inch air filters
• Metal construction for durability in air handler environments
• Keeps filter media properly seated to reduce air bypass
• Suitable for new installations and retrofit applications

Compatibility

Designed as an OEM-style replacement or add-on filter rack for residential and light commercial forced-air HVAC systems requiring a 14 x 25 inch filter position.

Installation Notes

Installation is typically performed by a licensed HVAC technician. Power the air handler or furnace off at the disconnect before beginning any ductwork or filter rack installation. The rack should be secured to the duct or equipment cabinet to prevent movement that could allow unfiltered air bypass. Confirm the filter rack orientation allows for proper filter insertion and easy serviceability during routine maintenance.

Technical Specifications

• Filter Size: 14 x 25 inches
• Material: Metal
• UNSPSC Code: 40161500

Standard Information

• Brand: ALADDIN METAL PRODUCTS
• Manufacturer Part Number: al-fr1425-1
