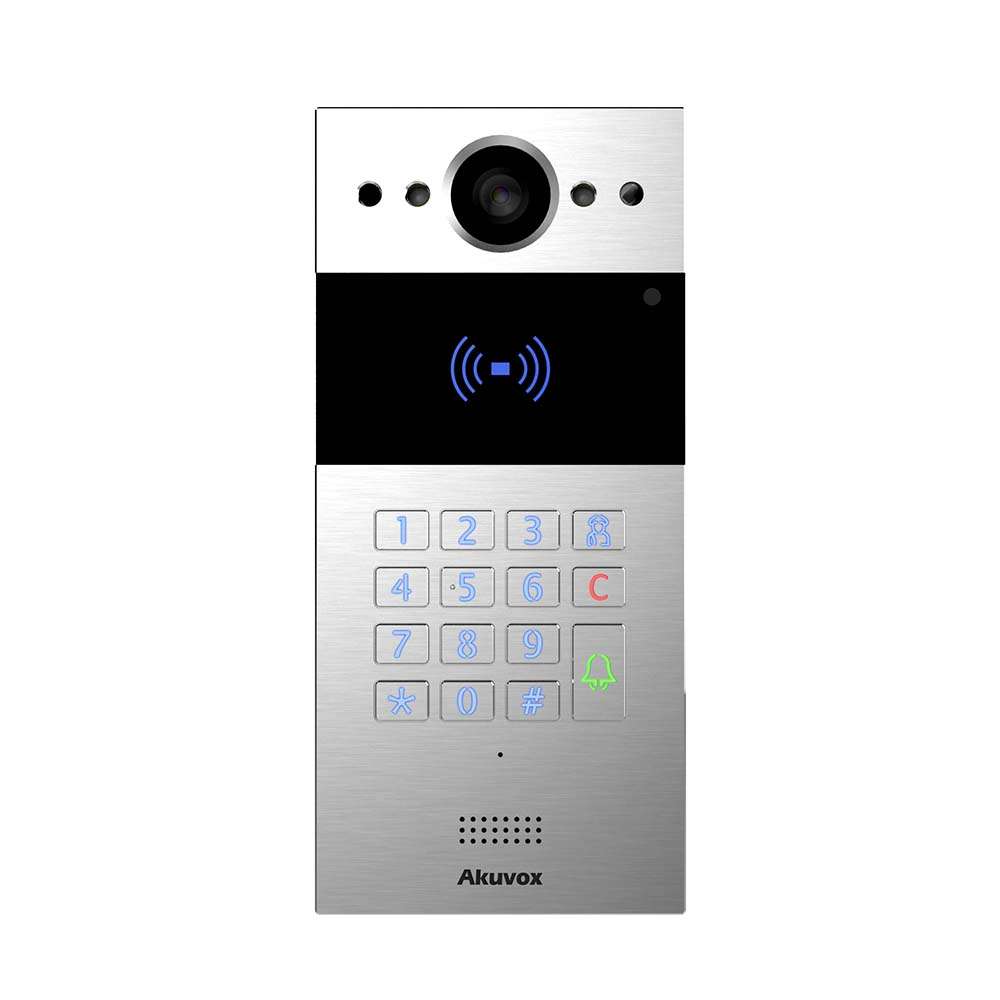

Akuvox R20K-BLACK Intercom Video Doorphone

Product Description

The Akuvox R20K-BLACK Intercom Video Doorphone is a slim SIP intercom that features a keypad and RF card reader. This device is IP65 rated and supports PoE. It also supports the ONVIF standard for easy integration. It has a 2M pixel camera with automatic lighting.

• Vandal-resistant body with numeric keypad
• Wide-angle camera: 110o (H), 58o (V)
• PoE (IEEE802.3af, Power-over-Ethernet)

Product Highlights

The Akuvox R20K-BLACK provides two-way audio communication over IP networks with echo cancellation and SIP standard integration.

Product Information

Standard Information

• Brand: Akuvox
• Manufacturer Part Number: R20K-BLACK

Technical Specifications

• Front panel: Aluminum alloy
• Camera: 2M pixels, automatic lighting
• Numeric keypad: with extra buttons
• Light sensor: Support
• Infrared sensor: Support
• Wiegand port: Support
• RS485 port: Support
• RF card reader: 13.56MHz (with NFC) & 125kHz
• Relays out: 2
• Inputs: 2
• Microphone: -40dB
• SIP v1 (RFC2543), SIP v2 (RFC3261):
• Narrowband audio codec: G.711a, G.711μ, G.729
• Broadband audio codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
• Sensor: 1/2.7”, CMOS
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video codec: H.264, H.265
• Video resolution: up to 1920×1080
• Max. image transfer rate: 1080p – 25fps
• Viewing angle: 110°(H) / 58°(V)
• White balance: auto
• Minimum illumination: 0.1LUX
