AIRTEC 81913(MV3) MV Series Classic Ceiling Diffuser Power 8 x 8 Replacement MPN 1517

Product Description

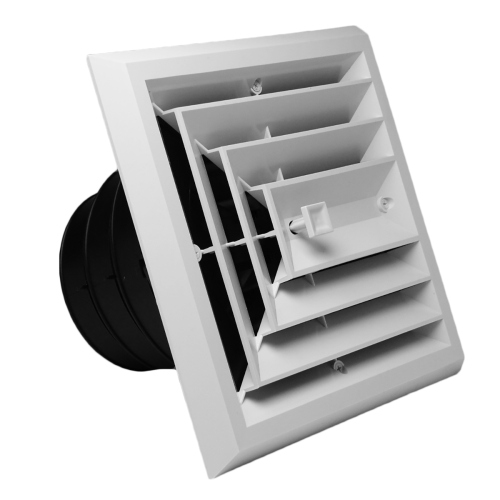

The AIRTEC 81913(MV3) MV Series Classic Ceiling Diffuser is designed for efficient air distribution in HVAC systems. This diffuser features a three-way square grille alongside an incorporated ceiling box, allowing for versatility in airflow direction. It is suitable for duct sizes ranging from six to eight inches, making it ideal for various installation needs.

• Available for duct sizes: six, seven, and eight inches.
• Max ceiling thickness of one point two five inches.
• Requires a hole diameter of nine point two five inches for installation.

Product Highlights

The design of this ceiling diffuser facilitates effective air flow management and helps maintain optimal temperature control in spaces.

Product Information

Standard Information

• Manufacturer: AIRTEC
• Part Number: 154303

Technical Specifications

• Model Number: MV3
• Alternate Manufacturer Number: 1517
• AK Factor: 0.29
• Carton Quantity: 4
• Carton Weight: 9 lbs
• Max Ceiling Thickness: 1.25 inches
• Required Hole Diameter: 9.25 inches
• Duct Sizes Supported: 6, 7, 8 inches
