AirMate 503M_14X08-W Ceiling Side Wall Register 14 x 8 Multi-Shutter Damper

Product Description

The AirMate 503M_14X08-W is a ceiling and side wall supply register designed for residential applications. This unit features a stamped face and curved blade for effective air distribution, making it suitable for various HVAC needs.

• Deflection Type: 3-Way
• Material: Steel with Enamel Finish
• Overall Dimensions: 15-5/8 inches Width x 9-5/8 inches Height

Product Highlights

This supply register includes a multi-shutter damper for optimal airflow control. The bright white enamel finish offers a clean look that blends with most ceilings and walls.

Product Information

Standard Information

• Brand: AirMate
• MPN: 503M_14X08-W

Technical Specifications

• Type: Ceiling/Side Wall, Stamped Face, Curved Blade
• Deflection: 3-Way
• Fin Spacing: 9/16 inches
• Material: Steel
• Finish/Color: Enameled Bright White
• Inclusions/Features: Multi-Shutter Damper
• Nominal Size: 14 inches Width x 8 inches Height

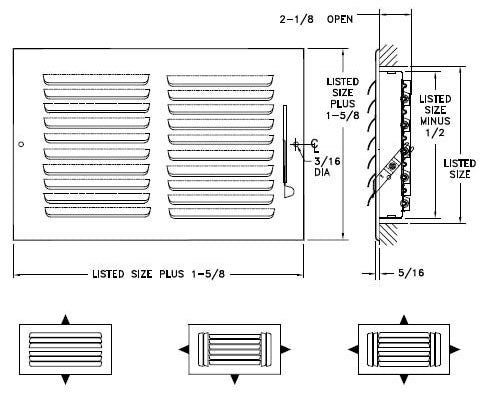

• Overall Dimensions: 15-5/8 inches Width x 9-5/8 inches Height
