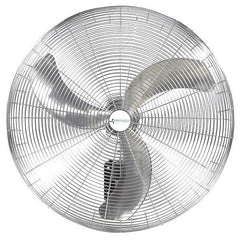

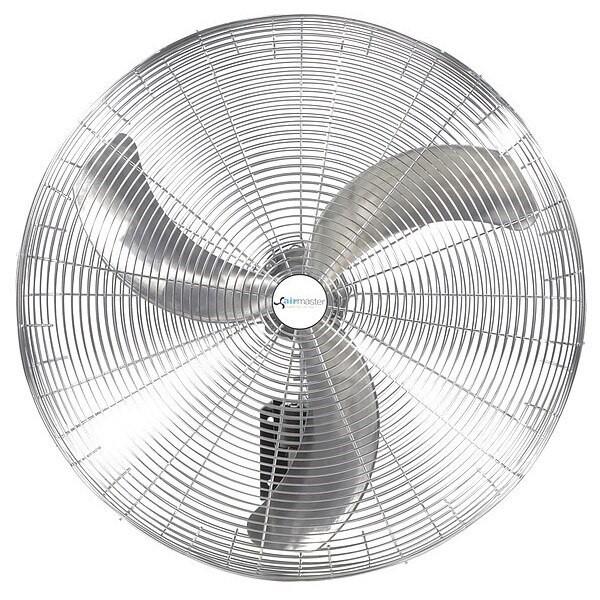

Airmaster 70767 Washdown Wall Mount Fan 30 in 115V 8800 Cfm

Product Description

The AIRMASTER 70767 is a heavy-duty washdown wall mount fan built for demanding industrial and commercial environments where corrosion resistance and high airflow are both required. Constructed from stainless steel, it delivers 8800 CFM of airflow at 115 volts, single phase. The 30-inch blade diameter moves substantial air volume across large open spaces, making it well suited for food processing facilities, commercial kitchens, livestock buildings, and other wet or washdown-rated locations. At 64 pounds, the unit is built for permanent wall mounting and is intended for installation by qualified electricians or facilities maintenance personnel.

This fan is designed for fixed, non-oscillating wall mount applications in environments that require regular washdown cleaning or where moisture, grease, or contaminants are present. Typical install scenarios include food processing plants, poultry and hog facilities, commercial laundry operations, breweries, and industrial production floors where sanitation standards demand equipment that can withstand direct water spray and caustic cleaning agents. The stainless steel construction supports compliance with sanitation protocols common in these settings.

Key Features

• Stainless steel construction rated for washdown environments
• 30-inch blade diameter delivering 8800 CFM airflow
• Non-oscillating fixed-position wall mount design
• 115V single-phase power input for standard industrial circuits
• 1/3 HP motor for reliable, continuous-duty operation
• 64-pound robust build suited for permanent structural mounting

Compatibility

Designed as an OEM-style replacement or direct-install washdown wall mount fan for industrial and commercial ventilation systems requiring a 30-inch, 115V single-phase unit with stainless steel construction.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for the intended environment, including proper wet-location wiring methods and appropriate overcurrent protection. Shut off and lock out power at the panel before mounting or making any electrical connections. The wall mounting surface must be structurally rated to support the unit weight of 64 pounds plus dynamic load. Do not operate the fan without confirming all mounting hardware is fully secured and the electrical enclosure is properly sealed for the washdown environment.

Technical Specifications

• Airflow: 8800 CFM
• Voltage: 115V
• Phase: 1 Phase
• Motor Horsepower: 1/3 HP
• Blade Diameter: 30 inches
• Oscillation: Non-Oscillating
• Material: Stainless Steel
• Mount Type: Wall Mount
• Weight: 64 pounds
• UPC: 783429707674

Standard Information

• Brand: AIRMASTER
• Manufacturer Part Number: 70767
