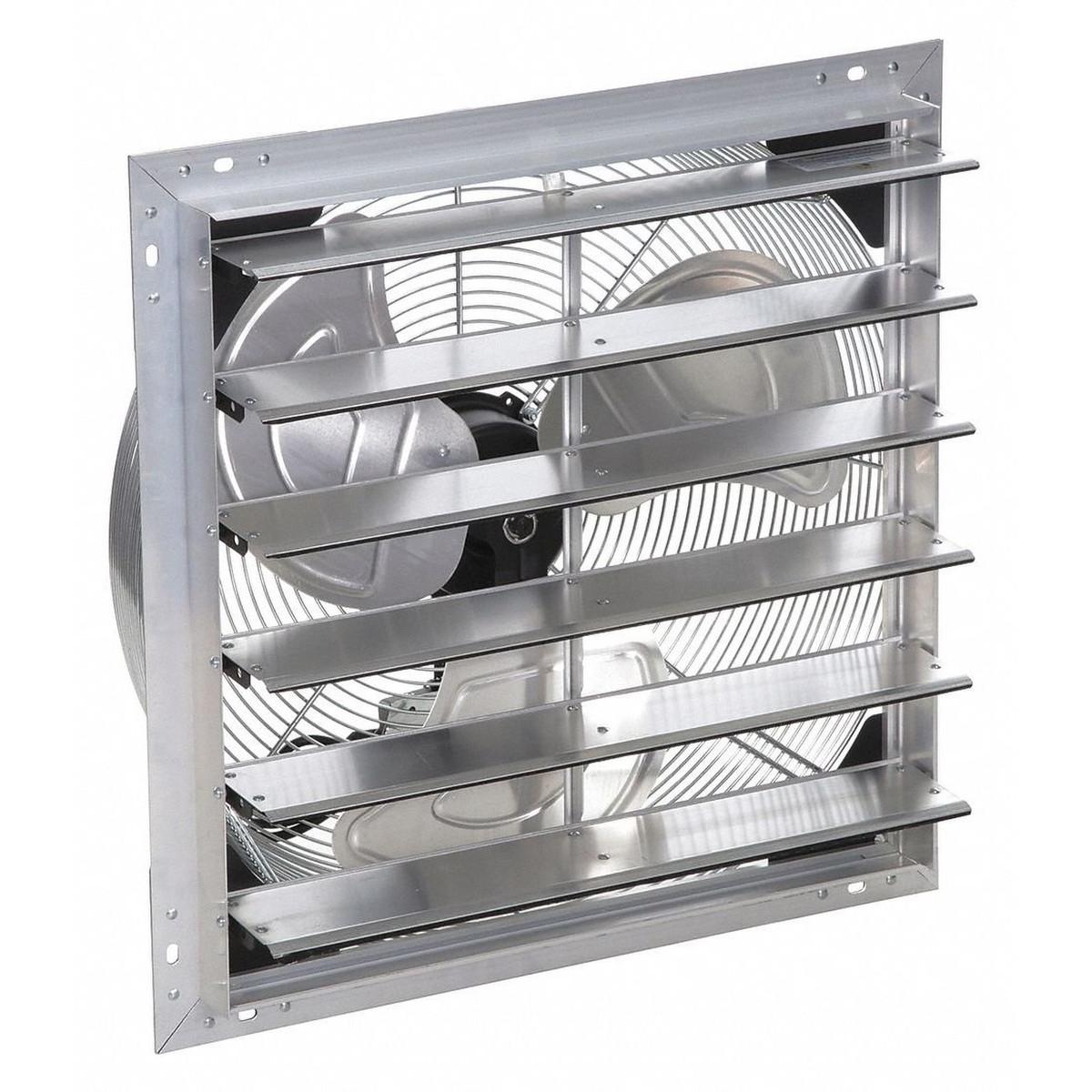

Airmaster 23013 Low Pressure Shutter Fan 18 in 1716 Cfm

Product Description

The AIRMASTER 23013 is an 18-inch low pressure shutter fan designed for ventilation applications in commercial and industrial facilities. The unit ships fully assembled and runs on 115 volts, delivering 1716 CFM of airflow through an 18-inch propeller. A totally enclosed motor protects internal components from dust and moisture, extending service life in demanding environments. Licensed electricians and HVAC technicians are the typical installers. This fan suits facilities requiring reliable exhaust or supply ventilation where a wall- or louver-mounted shutter unit is the specified solution.

The 23013 is suited for agricultural buildings, warehouses, garages, and light industrial spaces that require continuous or intermittent exhaust ventilation. The integrated shutter assembly opens under airflow and closes when the fan is off, limiting backdraft and weather infiltration. Its 115-volt single-phase power requirement makes it compatible with standard branch circuits commonly found in these applications.

Key Features

• 18-inch propeller delivers 1716 CFM of low-pressure airflow
• Totally enclosed motor resists dust and moisture ingress
• Integrated shutter opens on operation and closes at rest to block backdraft
• Fully assembled — no additional fan-to-shutter assembly required at installation
• 115-volt single-phase operation fits standard branch circuits

Compatibility

Designed as a standalone low pressure shutter fan unit for wall or opening-mounted ventilation installations in residential, agricultural, commercial, and light industrial settings.

Installation Notes

Installation should be performed by a qualified electrician or HVAC technician in accordance with the NEC and any applicable local codes. Disconnect and lock out power at the panel before wiring or servicing the unit. Ensure the mounting opening is sized and framed to support the fan housing and that the shutter swings freely without obstruction after installation. Do not operate the unit without confirming that the branch circuit ampacity and overcurrent protection are matched to the motor nameplate requirements.

Technical Specifications

• Propeller Size: 18 inches
• Airflow: 1716 CFM
• Voltage: 115 volts
• Motor Enclosure: Totally Enclosed
• Assembly: Fully Assembled
• Weight: 25 pounds
• UPC: 783429230042

Standard Information

• Brand: AIRMASTER
• Manufacturer Part Number: 23013
