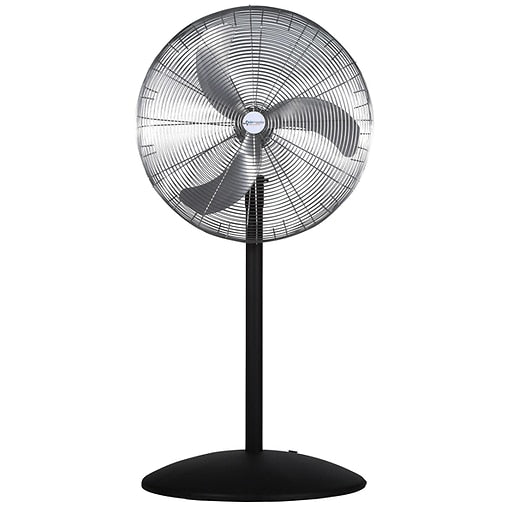

Airmaster 20351 Pedestal Fan 30 Inches 8723 Cfm Explosion Proof

Product Description

The AIRMASTER 20351 is a heavy-duty, single-speed pedestal fan built around a 30-inch propeller and an explosion-proof motor. It delivers 8,723 CFM of airflow at 1,140 RPM, powered by a 1/4 horsepower motor rated for 115/230V single-phase operation. The explosion-proof motor classification makes this fan appropriate for environments where flammable vapors, gases, or dust may be present. Licensed industrial ventilation contractors and facility maintenance professionals are the primary installers of this unit. At 98 pounds, it is a heavy-duty fixture intended for permanent or semi-permanent placement in demanding industrial or commercial settings.

The AIRMASTER 20351 is suited for large industrial spaces, warehouses, manufacturing floors, agricultural facilities, and other commercial environments requiring high-volume air movement. The pedestal mount allows flexible floor-level positioning without requiring wall or ceiling attachment. Its explosion-proof motor rating makes it appropriate for paint booths, chemical storage areas, refineries, and similar classified hazardous locations where standard open-motor fans are not permitted by code.

Key Features

• Explosion-proof motor rated for hazardous-location use
• 30-inch propeller delivering 8,723 CFM airflow
• Dual-voltage operation at 115V or 230V single-phase
• Single-speed 1/4 HP motor running at 1,140 RPM
• Pedestal mount for flexible floor positioning without wall or ceiling anchoring
• Heavy-duty construction at 98 pounds for stable, permanent industrial deployment

Compatibility

Designed as an OEM-style replacement or direct-install pedestal fan for industrial and commercial ventilation applications requiring an explosion-proof, high-CFM floor fan with a 30-inch propeller.

Installation Notes

Installation should be performed by a qualified electrician or licensed contractor familiar with NFPA 70 (NEC) requirements for hazardous-location equipment. Verify the area classification and confirm the motor explosion-proof rating matches the location rating before energizing. Disconnect and lock out all power before making any electrical connections or adjustments. Do not operate with guards removed in classified areas.

Technical Specifications

• Propeller Size: 30 inches
• Airflow: 8,723 CFM
• Voltage: 115/230V
• Horsepower: 1/4 HP
• Phase: Single
• Speed: Single Speed
• RPM: 1,140
• Motor Type: Explosion Proof
• Mount Type: Pedestal
• Weight: 98 pounds

Standard Information

• Brand: AIRMASTER
• Manufacturer Part Number: 20351
