Product Description

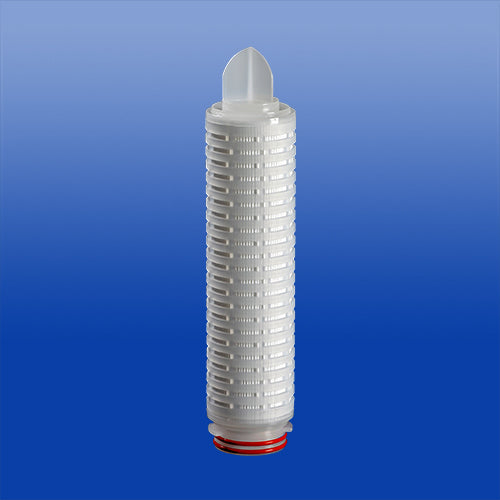

The AIRGAS BTG Series Sterilizing-grade Filter Cartridge is designed for effective filtration using a hydrophobic polytetrafluoroethylene (PTFE) membrane. It offers compatibility with solvents, oxidizers, and corrosive substances, making it suitable for various applications. This cartridge features a robust polypropylene structure including a support layer, cage, core, and end cap. Sealing options include silicone, EPDM, NBR, FKM, and E-FKM. Each cartridge undergoes thorough integrity testing to ensure performance.
- Features a hydrophobic PTFE membrane.
- Undergoes 100% integrity testing.
- Compatible with various solvents and corrosive fluids.
Product Highlights
This filter cartridge is ideal for environments requiring reliable sterilization and filtration. Designed for industrial use, it ensures safe processing of liquids.
Product Information
Standard Information
Technical Specifications
-
Outer Diameter: 69 mm
-
Lengths: 5, 10, 20, 30, 40 inches
-
Media: Hydrophobic PTFE
-
Support Layer: Polypropylene
-
Cage/Core/End Cap: Polypropylene
-
Seal Material Options: Silicone, EPDM, NBR, FKM, E-FKM
-
Maximum Operating Temperature: 80°C
-
Maximum Differential Pressure (Forward): 4 bar at 20°C, 2 bar at 80°C
-
Autoclave Sterilization SIP: 125°C, 30 minutes, 100 cycles
-
Operating Limits: 100% Integrity Tested
