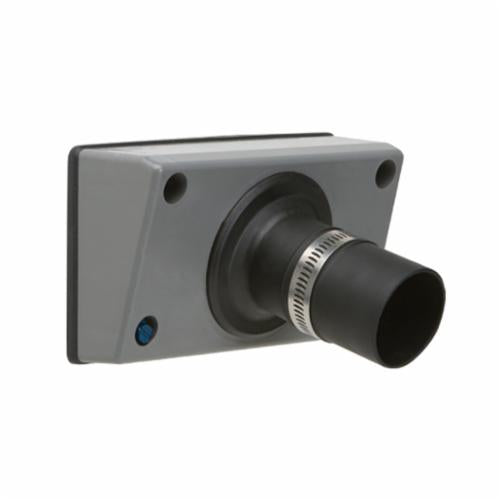

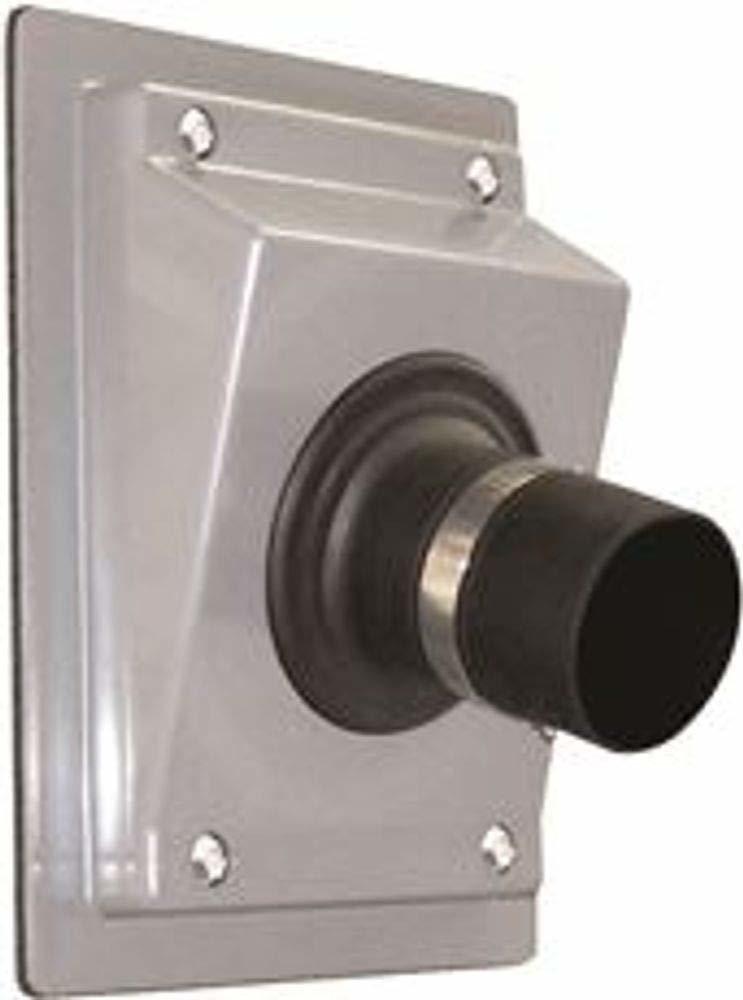

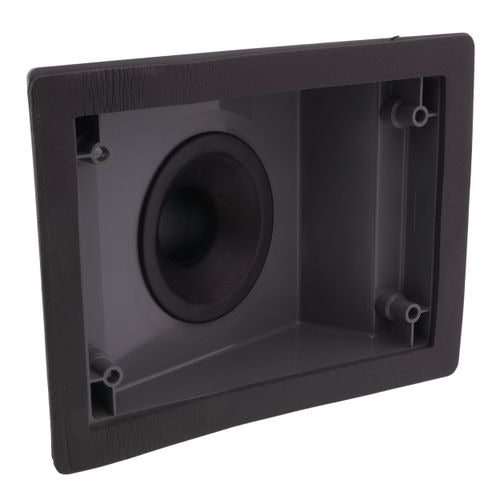

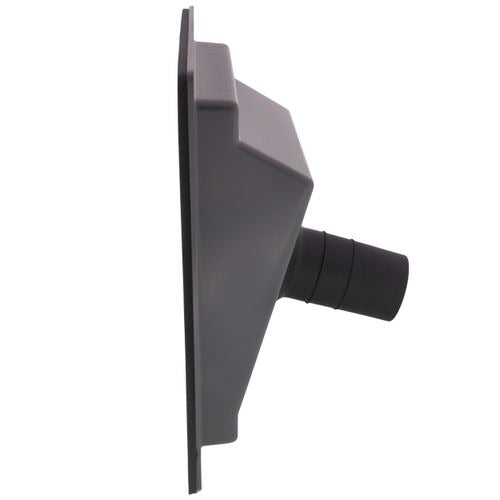

Airex TGS-550-G Wall Penetration Seal Outlet (5/8 inches, 3/4 inches, 7/8 inches)

Product Description

The Airex TGS-550-G is a PVC wall penetration seal outlet designed to provide a sealed enclosure for pipes or conduits passing through walls, helping maintain fire, smoke, and air barriers while preventing moisture intrusion. The unit uses an over-molded elastomeric sleeve and gasket compression system to seal around refrigerant and line-set piping and to reduce vibration and noise for HVAC applications.

• Fits 5/8", 3/4", and 7/8" tubing and accommodates 1/2" wall thickness pipe insulation; designed for line-set and refrigerant penetrations.
• Integral over-molded elastomeric sleeve with gasket compression and a designated clamp area provides anti-rodent, anti-wind, vibration control, and weather sealing.

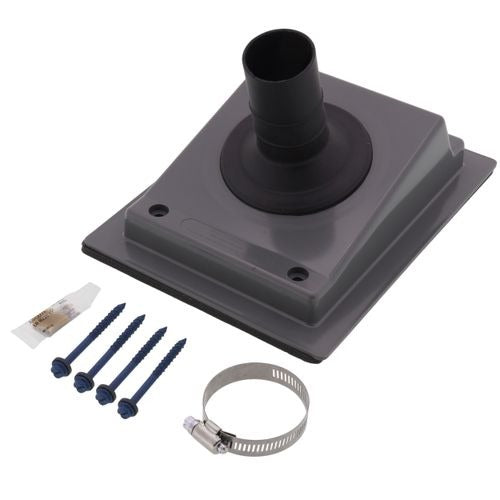

• Includes installation hardware (pre-mounted gasket, mechanical stainless steel clamp, lubricant bead, four all-material screws, pre-mounted neoprene washers); UV resistant PVC construction; meets multiple ASTM and UL standards.

Product Highlights

PVC wall penetration seal outlet for HVAC line sets; fits 5/8"–7/8" tubing with 1/2" insulation; elastomeric sleeve with gasket compression; hardware included; meets ASTM and UL standards.

Product Information

Standard Information

• Brand: AIREX
• Manufacturer Part Number: TGS-550-G
• Country of Origin: United States
