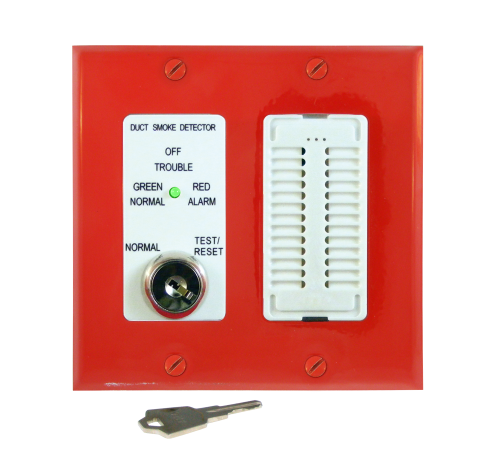

Air Products And Controls MSR-50RKA/R Control w/ Sounder Assembly, Red Double Gang Plate

Product Description

The AIR PRODUCTS AND CONTROLS MSR-50RKA/R remote accessories are designed for use with Air Products and Controls duct smoke detectors. This key test station comes in a red double gang Decora style control assembly with enhanced sounder. It features a key-operated detector test and reset function.

• The MSR-50RK provides a key-operated detector test and reset function.
• Enhanced sounder assembly.
• Decora style cover plates ( red).

Product Highlights

The MSR-50RKA/R remote is for use with duct smoke detectors, providing a key-operated detector test and reset function and enhanced sounder assembly.

Product Information

Standard Information

• Brand: AIR PRODUCTS AND CONTROLS
• Manufacturer Part Number: MSR-50RKA/R
• Country of Origin: USA

Technical Specifications

• Operating Element: Key switch
• Status Indicator ">– Alarm: Red
• Status Indicator ">– Fault: Off
• Operating Temperature (Min): 0°C
• Operating Temperature (Max): 49°C
• Operating Temperature: 0 to 49°C
• Standards: UL 268
• Colour: Red
• Key Type: Remote Test station test & reset key
• Housing Type: Face plate
• Series/Model: MSR-50R
• Item: Duct Smoke Detector Remote
• Sound Level: 87 Decibel at 10 Foot (High), 83 Decibel at 10 Foot (Low)
• Wire Size: 14 to 28 AWG (Solid/Stranded)
• Includes: Pilot, Trouble and Alarm LED Visual Indication, Sounder
• Used On: Duct Smoke Detector
• Approval: UL (Canada and US), CSFM 7300-1004, MEA 73-92-E
