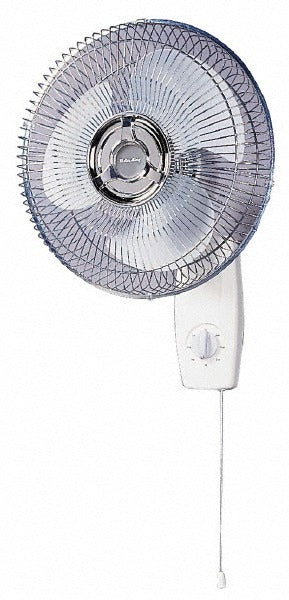

Air King AK9012 Oscillating Wall Fan 12 Inch 2357 Cfm

Product Description

The AIR KING AK9012 is a 12-inch oscillating wall-mount fan built for continuous air movement in demanding commercial and industrial environments. Running on 110 volts at 0.46 amps, the unit delivers up to 2,357 CFM across three selectable speeds, with a maximum motor speed of 1,470 RPM. The oscillating head sweeps air across a wide coverage zone, reducing hot spots without requiring portable floor units. Electricians and facility maintenance technicians typically handle the wired wall-bracket installation. The fan weighs 8.28 pounds, keeping structural load on the mounting surface minimal.

This wall fan is suited for warehouses, garages, workshops, manufacturing floors, and other spaces where floor space is limited but consistent airflow is required. The three-speed selection allows technicians or facility staff to match airflow output to ambient conditions. Single-phase power at 110 volts makes it compatible with standard commercial and light-industrial branch circuits. The oscillating function provides broader air distribution than a fixed-position unit, making it practical for large open bays or multi-workstation areas.

Key Features

• 12-inch fan blade diameter for focused, high-volume airflow
• Up to 2,357 CFM maximum airflow output
• Three-speed control for adjustable ventilation
• Oscillating head for wide-area air distribution
• 1,470 RPM maximum motor speed
• Lightweight at 8.28 pounds for easier wall-mount installation

Compatibility

Designed as an OEM-style wall-mount fan for commercial and industrial ventilation applications requiring single-phase 110-volt power.

Installation Notes

Wall-mount fan installation should be performed by a qualified electrician or licensed contractor in accordance with NEC guidelines for branch circuit wiring and fixture mounting. Power down the circuit at the breaker panel before making any electrical connections. Verify the wall surface and mounting hardware can support the unit weight and operational vibration load. Do not exceed the rated voltage or amperage for the circuit supplying this unit.
