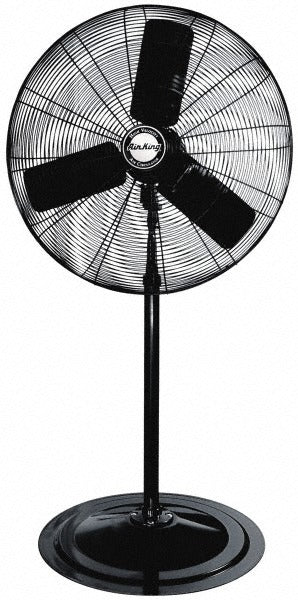

Air King 9125G Oscillating Pedestal Fan 0.25 Hp 5130 Cfm

Product Description

The AIR KING 9125G is a single-phase oscillating pedestal fan built for high-airflow ventilation in commercial and industrial environments. Powered by a direct-drive 1/4 HP motor, it moves up to 5,130 CFM through a 24-inch blade at a maximum speed of 1,060 RPM. The oscillating head distributes air across a wide coverage area, making it well suited for warehouses, loading docks, production floors, and large workshops where spot cooling and air circulation are required. Three selectable speed settings draw between 1.63 and 2.03 amps at 120 volts, allowing airflow to be matched to ambient conditions. The fan ships ready to assemble and is backed by ETL listing, NEMA MG-1, OSHA, and UL 507 compliance.

The 9125G is designed for permanent or semi-permanent placement in large-area ventilation applications. Its adjustable pedestal base allows the fan head to be positioned at varying heights to direct airflow toward personnel or equipment. The 10-foot cord provides flexibility in positioning relative to power sources. This fan is a common selection for facilities managers, electrical contractors, and HVAC service companies equipping industrial or commercial spaces that require reliable, high-volume air movement without ductwork.

Key Features

• 24-inch blade diameter delivers up to 5,130 CFM maximum airflow
• 1/4 HP direct-drive single-phase motor runs at up to 1,060 RPM
• Oscillating head provides broad air distribution across large floor areas
• Three speed settings with amperage draw of 2.03, 1.81, and 1.63 amps
• 10-foot power cord for flexible placement near available outlets
• ETL Listed, NEMA MG-1, OSHA, and UL 507 compliant

Compatibility

Designed as a freestanding pedestal fan for large-area commercial and industrial ventilation applications requiring single-phase 120-volt power.

Installation Notes

Assembly and placement is typically performed by facilities maintenance staff or an electrical contractor. Verify the outlet circuit is rated for the fan's amperage draw before connecting. Position the pedestal on a level, stable surface and ensure the oscillation arc is clear of obstructions before operating. Do not modify the power cord or bypass the grounding pin on the plug.
