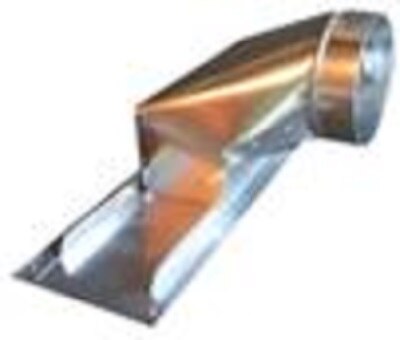

Air Flow Products 5361408 Ceiling Diffuser Boot 6x14 8in Collar

Product Description

The AIR FLOW PRODUCTS 5361408 is a ceiling diffuser boot with rail, designed to connect ductwork to a ceiling diffuser in residential and light commercial HVAC systems. The boot features a 6 x 14 inch face opening and an 8 inch round collar for duct connection. This fitting directs conditioned air from the supply duct into the occupied space through a ceiling-mounted diffuser. It is installed by HVAC technicians during new construction or system retrofit work where a smooth transition from round duct to a rectangular diffuser opening is required.

This ceiling diffuser boot is suited for supply air applications in forced-air HVAC systems where a ceiling diffuser is the terminal air distribution device. The integrated rail simplifies diffuser mounting and helps hold the diffuser panel securely in the finished ceiling. Typical installations include residential living spaces, office areas, and light commercial environments using standard 6 x 14 inch diffuser frames.

Key Features

• 6 x 14 inch rectangular face opening sized for standard ceiling diffuser frames
• 8 inch round collar for connection to supply duct
• Integrated rail for secure diffuser panel mounting
• Designed for ceiling supply air applications in forced-air systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for ceiling diffuser applications requiring a 6 x 14 inch face and an 8 inch round collar connection.

Installation Notes

Installation is performed by a licensed HVAC technician or sheet metal installer. Power down the air handling unit before cutting into existing ductwork or securing the boot in place. The boot should be sealed at the collar connection with approved HVAC foil tape or mastic to prevent air leakage. Follow local mechanical codes and SMACNA guidelines for duct fitting installation and support.

Technical Specifications

• Face Opening: 6 x 14 inches
• Collar Size: 8 inches
• Mount Type: Ceiling
• Rail: Included

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 5361408
