Air Flow Products 5361206 Ceiling Diffuser Boot 6x12

Product Description

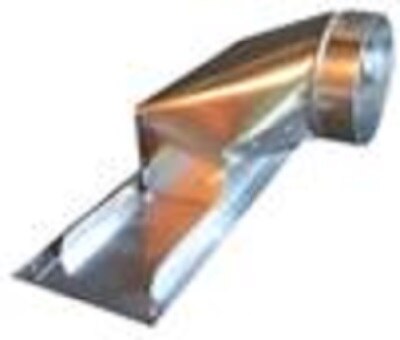

The AIR FLOW PRODUCTS 5361206 is a ceiling diffuser boot with an integrated rail, designed to connect ductwork to a ceiling diffuser in residential and light commercial HVAC systems. The boot features a 6x12 inch rectangular opening and a 6 inch round collar for duct connection. This fitting serves as the transition point between the supply duct and the ceiling diffuser, directing conditioned air into the occupied space. HVAC technicians and sheet metal installers fit this boot during new construction rough-in or when replacing damaged existing boots during a system retrofit.

This ceiling diffuser boot is suited for residential and light commercial forced-air supply systems where a ceiling-mounted diffuser is the terminal air distribution device. The integrated rail simplifies diffuser attachment and alignment at the ceiling plane. The 6x12 inch face opening accommodates standard 6x12 ceiling diffusers, and the 6 inch collar connects directly to round supply branch duct. It is a common fitting in trunk-and-branch and radial duct system layouts.

Key Features

• Integrated rail for secure diffuser attachment at the ceiling
• 6x12 inch rectangular face opening sized for standard ceiling diffusers
• 6 inch round collar for direct round duct connection
• Designed for ceiling-mounted supply air distribution
• Suitable for residential and light commercial forced-air HVAC applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for ceiling diffuser boots used in residential and light commercial forced-air supply duct systems with a 6x12 inch diffuser opening and 6 inch round branch duct.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified sheet metal installer. Shut down the air handling system and confirm the unit is de-energized before cutting into existing ductwork or securing the boot at the ceiling opening. The boot should be secured to ceiling framing and sealed at the collar with listed duct tape or mastic sealant per local mechanical code requirements. Follow applicable SMACNA standards and local jurisdiction guidelines for duct system installation.

Technical Specifications

• Face Opening: 6x12 inches
• Collar Diameter: 6 inches
• Boot Type: Ceiling Diffuser Boot with Rail

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 5361206
