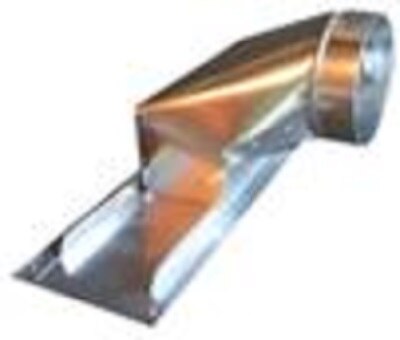

Air Flow Products 5361006 Ceiling Diffuser Boot 6x10 6in

Product Description

The AIR FLOW PRODUCTS 5361006 is a ceiling diffuser boot with an integrated rail, designed to connect ductwork to a ceiling diffuser in residential and light commercial HVAC systems. The boot features a 6x10 inch face opening and a 6 inch round collar for duct connection. It provides a clean, secure transition from round flex or rigid duct to a ceiling diffuser, ensuring proper airflow distribution at the register. HVAC installers and sheet metal mechanics typically select this fitting during new construction or system retrofit work where a ceiling-mount supply outlet is required.

This boot is suited for residential forced-air systems and light commercial applications where ceiling diffusers are installed in finished or drop-ceiling assemblies. The integrated rail simplifies diffuser mounting and helps maintain alignment during installation. It is a standard selection for supply-air ceiling outlets in conditioned spaces requiring a 6 inch round collar connection and a 6x10 inch face.

Key Features

• 6x10 inch face opening sized for standard ceiling diffuser frames
• 6 inch round collar for connection to flex or rigid round duct
• Integrated rail supports diffuser mounting and alignment
• Designed for ceiling supply-air applications in HVAC systems
• Suitable for new construction and retrofit installations

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial HVAC ceiling diffuser assemblies requiring a 6x10 inch face boot with a 6 inch round collar.

Installation Notes

This fitting is installed by licensed HVAC technicians or sheet metal mechanics. Shut down the air handling system and lock out power before beginning ductwork modifications. Secure the collar connection to the supply duct with appropriate sheet metal screws and UL-listed foil tape or mastic sealant per local mechanical codes. Verify the diffuser face is flush with the ceiling surface before fastening.

Technical Specifications

• Face Opening: 6x10 inches
• Collar Diameter: 6 inches
• Configuration: Ceiling diffuser boot with integrated rail

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 5361006
