Air Flow Products 5341005 Ceiling Diffuser Boot 4x10

Product Description

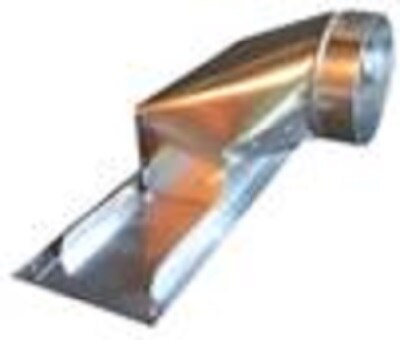

The AIR FLOW PRODUCTS 5341005 is a ceiling diffuser boot with rail designed for residential and light commercial HVAC duct distribution systems. This boot transitions from round duct to a rectangular diffuser opening, directing conditioned air into the occupied space through a ceiling-mounted register or diffuser. The unit features a 4x10 inch face opening and a 5 inch round collar for duct connection. It is installed by HVAC technicians and sheet metal contractors as part of supply air trunk-and-branch or plenum-based distribution layouts.

This ceiling diffuser boot is suited for new construction and retrofit applications where a ceiling register or diffuser is fed from a round flex duct or rigid round branch. The 5 inch collar accommodates standard 5 inch round duct connections, and the 4x10 inch opening matches widely used residential register sizes. The rail design supports secure registration of the diffuser or register face, keeping the assembly flush and stable in the ceiling plane.

Key Features

• 4x10 inch rectangular face opening matches standard residential register sizing
• 5 inch round collar for direct connection to flex duct or rigid round branch duct
• Rail design provides a stable mounting surface for ceiling diffusers or registers
• Transitions round duct to rectangular diffuser opening for ceiling supply applications
• Suitable for new construction and retrofit ceiling supply installations

Compatibility

Designed as an OEM-style replacement and new-installation component compatible with standard 5 inch round duct systems feeding 4x10 inch ceiling registers or diffusers in residential and light commercial HVAC applications.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal contractors. Power down the air handling system before connecting ductwork or securing the boot in the ceiling cavity. The boot should be sealed at the collar connection with approved duct mastic or metal-backed tape per local mechanical code requirements. Ensure the register or diffuser face seats flush against the rail before securing.

Technical Specifications

• Face Opening: 4x10 inches
• Collar Diameter: 5 inches
• Mount Type: Ceiling
• Style: Boot with Rail

Standard Information

• Brand: AIR FLOW PRODUCTS
• Manufacturer Part Number: 5341005
