Aiphone jm-4med-u Video Master Station 7 Inch Lcd

Product Description

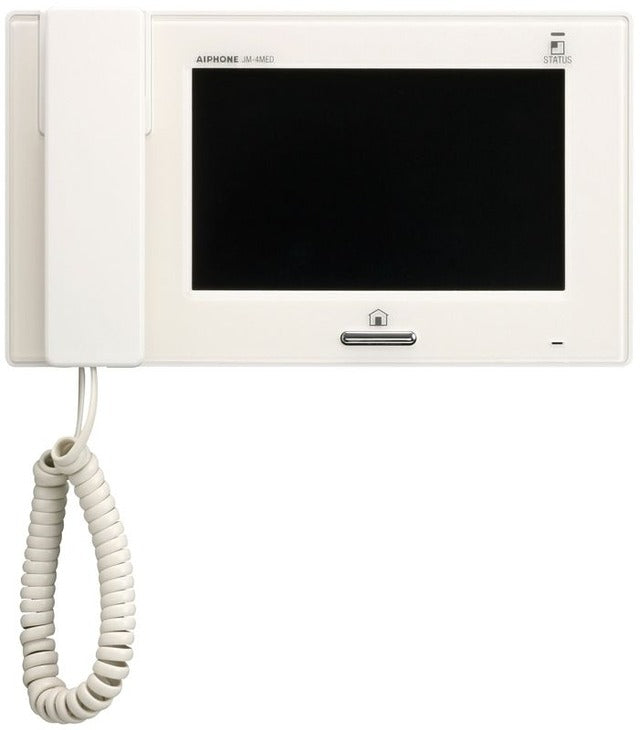

The AIPHONE jm-4med-u is a video master station built around a 7-inch color touchscreen LCD display. It serves as the central communication hub in a JM-series intercom system, handling both handset (duplex) and hands-free VOX communication modes. The unit supports up to 4 door stations and 7 sub master stations simultaneously. Pan-tilt-zoom (PTZ) and brightness controls give the installer and end user direct command over door station camera angle and lighting. This station is installed by low-voltage electricians and security technicians in residential and light commercial applications.

The jm-4med-u fits intercom systems where centralized visitor management is required. Every inside station in the network includes a door release button for controlled entry. Picture memory captures and stores up to 20 calls to internal memory and up to 1,000 calls to a removable SD or SDHC card, which is not included with the unit. The station connects to door stations via 18AWG 2-conductor cable and links to sub master stations over CAT-5e or CAT-6 cable, making it compatible with standard low-voltage structured wiring practices.

Key Features

• 7-inch color touchscreen LCD for clear video monitoring of door stations
• Supports handset (duplex) and hands-free VOX communication modes
• Connects up to 4 door stations and 7 sub master stations
• PTZ and brightness controls for camera angle and lighting adjustment
• Picture memory stores up to 20 calls internally and 1,000 calls to SD or SDHC card
• Door release button on all inside stations for visitor entry control

Compatibility

Connects to door stations using 18AWG 2-conductor cable and to sub master stations using CAT-5e or CAT-6 cable within the JM-series intercom system. Supports up to 4 door stations and 7 sub master stations per master station.

Installation Notes

Installation should be performed by a licensed low-voltage electrician or qualified security systems technician. Power down the intercom system fully before making any wiring connections. Follow all applicable NEC guidelines for low-voltage wiring runs and cable separation from line-voltage conductors. Do not exceed the stated cable type requirements when wiring door stations or sub master connections.

Technical Specifications

• Display: 7-inch color touchscreen LCD
• Communication Modes: Handset duplex and hands-free VOX
• Door Station Capacity: Up to 4 door stations
• Sub Master Capacity: Up to 7 sub master stations
• Picture Memory: 20 calls internal, 1,000 calls via SD or SDHC card (not included)
• Door Station Cable Type: 18AWG 2-conductor
• Sub Master Cable Type: CAT-5e or CAT-6

Standard Information

• Brand: AIPHONE
• Manufacturer Part Number: jm-4med-u
