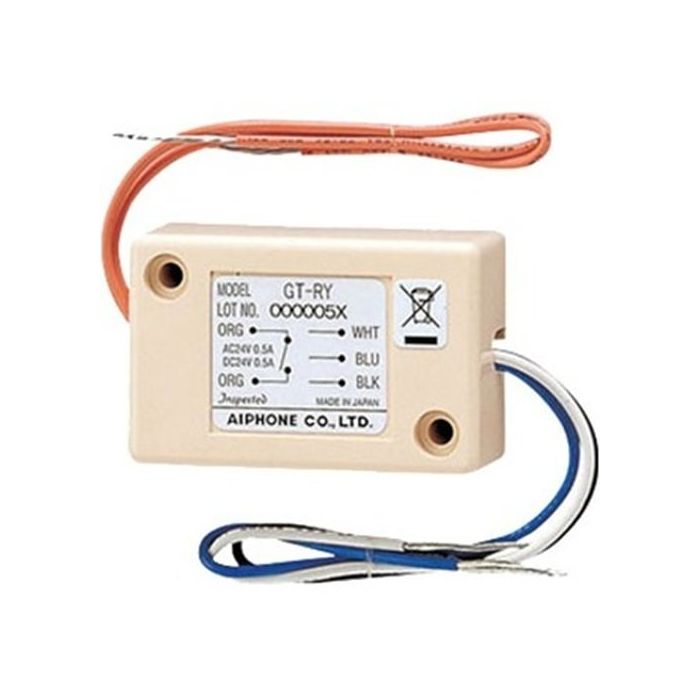

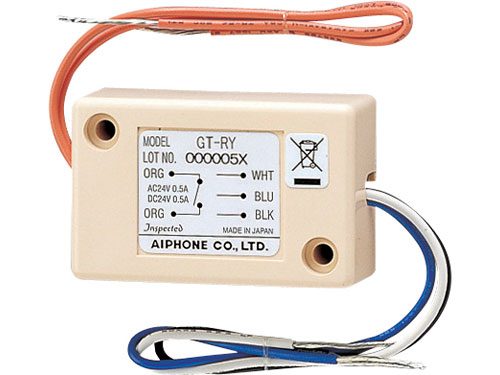

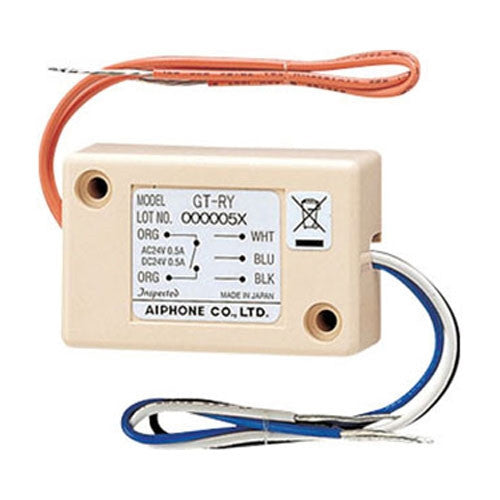

Aiphone GT-RY External Signaling/Option Relay

Product Description

The AIPHONE GT-RY is an external signaling/option relay for the GT Series. It provides a normally open dry contact closure upon call-in at a tenant station and can activate an external light at the entrance station when calling a tenant station. The option connector provided with the tenant station is required when using the GT-RY.

• Can provide a normally open dry contact closure upon call-in at a tenant station
• Can provide a contact to turn on external light at entrance station when calling tenant station
• Material: Zinc die cast

Product Highlights

The GT-RY relay is for use with the Aiphone GT Series video intercom system. It offers an open dry contact closure for performing actions like turning on a light when the tenant station is being called.

Product Information

Standard Information

• Brand: AIPHONE
• Manufacturer Part Number: GT-RY
• Country of Origin: Japan

Technical Specifications

• Brand: Aiphone
• Manufacturer Part Number: GT-RY
• Product Name: Relay
• Product Type: Relay
• Compatibility: Aiphone GT Stations
• Product Model: GT-RY
• Product Series: GT
• ADI Part Number: AJ-GTRY
• Environmentally Friendly: Yes
• Depth: 0.9"
• Width: 2.2"
• Height: 1.4"
• Depth (mm): 22
• Width (mm): 55
• Height (mm): 35
• Item [Specifications]: External Signaling Relay
• For Use With [Specifications]: GT Series
• Component Sub-Category [Specifications]: Power Management Devices
• Country of Origin (subject to change) [Specifications]: Thailand
• Contact ratings: Semi-conductor AC 24V, 0.5A. DC 24V, 0.5A
• Contact Material: Gold
• Mounting Type: DIN Rail Mount
• Operation Mode: Automatic
• Manufacturer: Aiphone Co., Ltd
• Part Number: GT-RY
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• TAA Compliant: no
• Product Line: Audio/Video Systems
