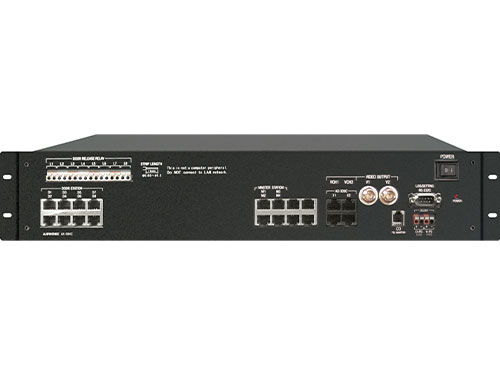

Aiphone AX-084C Central Exchange Unit

Product Description

The AIPHONE AX-084C is a central exchange unit for the AX integrated audio and video security system. It connects audio/video master or door stations via CAT-5e wiring and RJ45 jacks. It supports up to 4 master stations and 8 door/sub stations and can be expanded to support a maximum capacity of 104 doors. Programmable functionality is available via supplied software.

• Wiring hub for AX system using Cat-5e
• Two 24V DC power supply input terminals
• Rack mountable

Product Highlights

Central exchange unit controls the functionality of the AX system. Features composite video outputs, video switching triggers, and CO line transfer.

Product Information

Standard Information

• Brand: AIPHONE
• Manufacturer Part Number: AX-084C-U
• Country of Origin: Japan

Technical Specifications

• Consumption Video: 0.62A max
• Consumption Audio: 0.65A max
• CO Line Port: RJ11 for Viking K-1900-5 programmable auto-dialer
• Door Release: Programmable dry contact, 24V AC/ DC, 500mA - use EL-12S (use RY-24L for larger contact rating)
• Mounting: 19" EIA rack (2U) or wall mount
• Wire Type Between Door / Sub Station, Master Station, and Central Exchange Unit: Cat-5e
• Wire Type Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 2-cond., overall shield - use Aiphone 821802
• Wire Distance Door / Sub Station to Central Exchange Unit and Add-On Central Exchange Unit: 980'
• Wire Distance Central Exchange Unit to Master: 980'
• Wire Distance Central Exchange Unit to Add-On Central Exchange Unit: 16'
• Wire Distance Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 16'(22AWG) 33'(18AWG)
• Model: AX 084
• MPN: AX-084C
• Brand: Aiphone
• ADI Part Number: AJ-AX084C
• Manufacturer: Aiphone Co., Ltd
• Manufacturer Part Number: AX084C
• Product Model: AX-084C
• Product Name: AX-084C Intercom Central Exchange Unit
• Product Series: AX
• Product Type: Intercom Central Exchange Unit
• Application/Usage: Audio/Video System, Door Station, Security System, Signaling System
• Connectivity Technology: Wired
• Material: Metal
• NDAA Compliant: Yes
• TAA Compliant: Yes
• Depth: 13.2"
• Form Factor: Desk Mount, Rack Mount, Surface Mount, Wall Mount
• Height: 3.5"
• Width: 18.9"
• Input Voltage: 24V DC
• Mount Type: Desk Mount, Rack Mount, Surface Mount, Wall Mount
• Compatibility: Aiphone AX Series Integratable Audio/Video Security System
• Country of Origin: JP
• Indoor/Outdoor: Indoor
• Package Contents: AX-084C Intercom Central Exchange Unit Mounting Screws (For 19-inch Rack Mounting) USB to Serial Programming Cable With Driver Rack/Wall Mounting Brackets Mounting Screws and more below, Installation CD, QuikStart Guide
