Aiphone AC-2DE AC Series 2-Door Expander Board, 12V DC from Main Board

Product Description

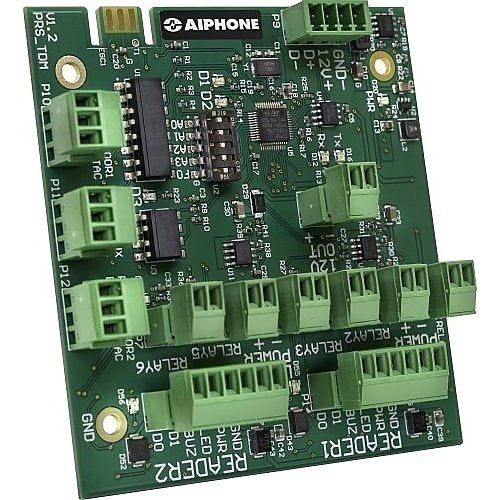

The Aiphone AC-2DE is a two-door expander board designed for access control systems. It connects seamlessly with an ACS-12DR starter kit, enabling installation for up to eight doors by adding three AC-2DE modules. This board includes two card reader inputs, six digital inputs, four solid-state dry contact relays, and two integrated lock power outputs. The controller communicates through RS485, compatible with PRS-Strip or standard RS485 wiring.

• Expandable for up to eight doors
• Multiple connectivity options with RS485
• Integrated lock power outputs

Product Highlights

This Aiphone board enhances security systems with multiple inputs and outputs. It is suited for various indoor applications where access control is essential.

Product Information

Standard Information

• Brand: Aiphone
• Model: AC-2DE

Technical Specifications

• Product Type: Access Control
• Product Line: Access Control
• Power Supply: 12V DC
• Indoor/Outdoor: Indoor
• TAA Compliant: Yes
