Aiphone 871802P10C 2-Conductor 18AWG Solid FEP Insulated Plenum Wire 1000 feet

Product Description

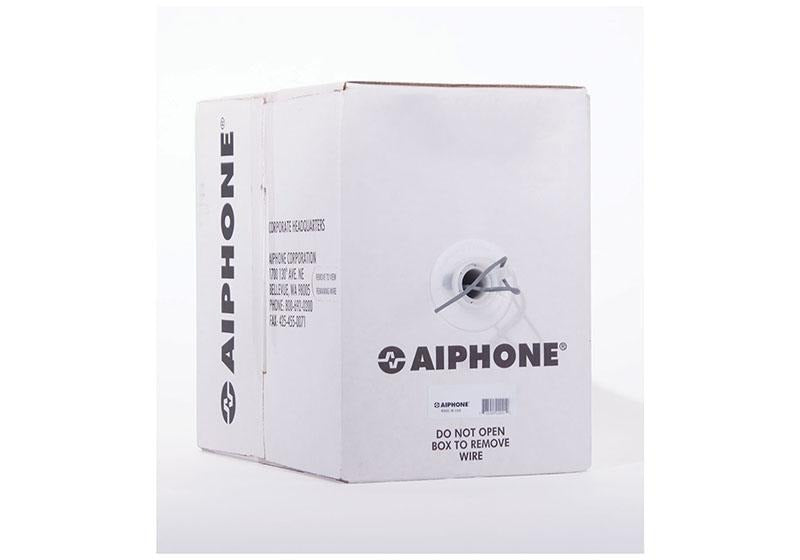

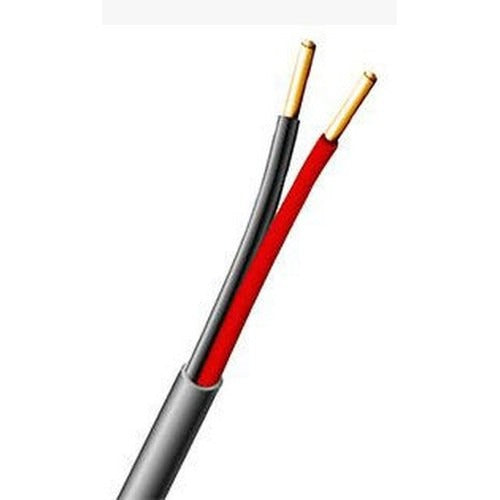

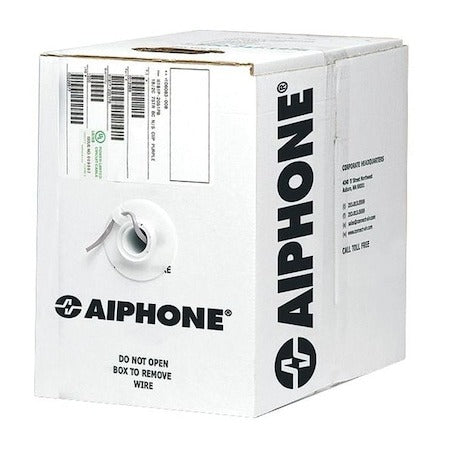

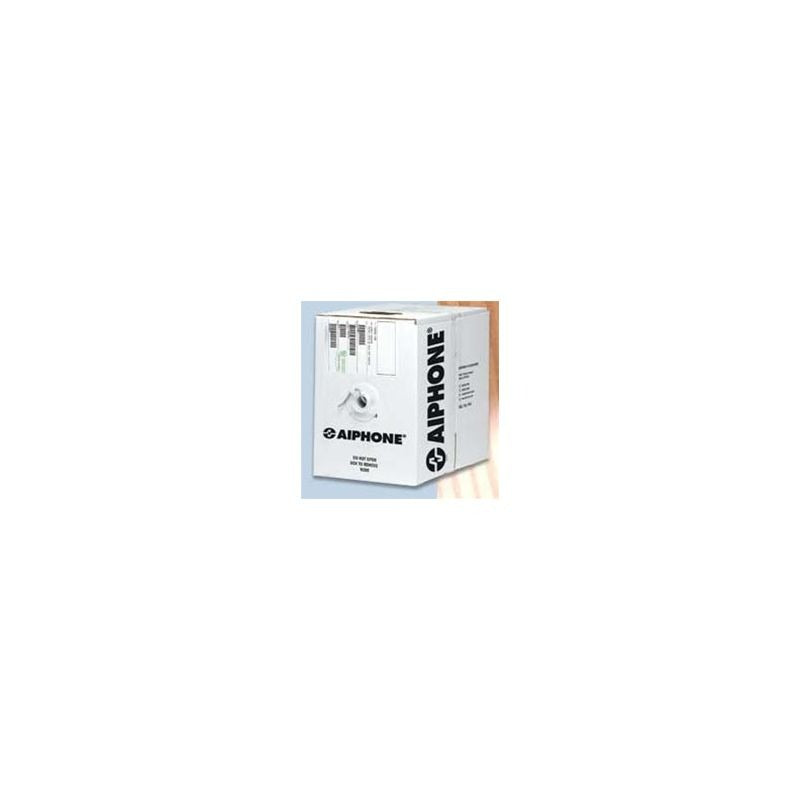

Aiphone 871802P10C is a 2-conductor, 18 AWG solid control/intercom cable supplied on a 1,000-foot spool. The cable features FEP insulation with a plenum-rated PVC jacket, low capacitance for signal transmission, and non-shielded conductors for intercom and low-voltage control installations in indoor and plenum spaces. It is UL and c(UL)us listed, RoHS II and REACH compliant, and manufactured in the United States.

• Plenum-rated construction with FEP insulation and plenum PVC jacket; suitable for air-handling spaces
• Two solid 18 AWG bare copper conductors; low capacitance (13.0 pF/ft) and DC resistance 6.39 ohms per 1,000 ft @ 68°F
• Non-shielded cable supplied on a 1,000 ft spool; UL and c(UL)us listed, RoHS II and REACH compliant

Product Highlights

2-conductor 18 AWG solid FEP-insulated plenum cable, 1,000 ft, low capacitance, UL/c(UL)us listed

Product Information

Standard Information

• Brand: AIPHONE
• Manufacturer Part Number: 871802P10C
• Country of Origin: United States
