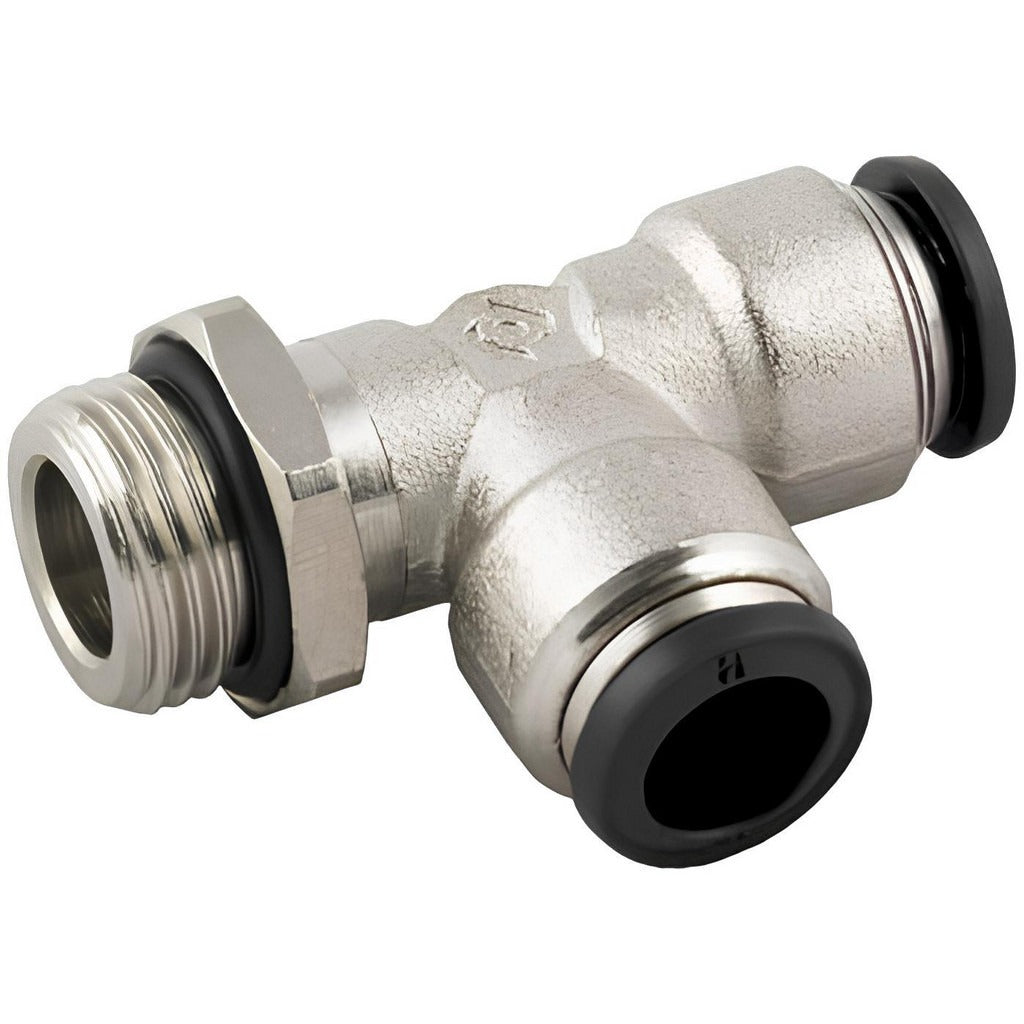

Aignep Usa 50225N-6-M5 Swivel Run Tee Fitting 6mm M5

Product Description

The AIGNEP USA 50225N-6-M5 is a push-to-connect swivel run tee fitting designed for connecting 6mm outside diameter tubing to M5 metric threaded ports. Constructed from nickel-plated brass with a Buna-N o-ring seal, it handles up to 250 psi working pressure across a temperature range of -4 degrees F to 160 degrees F. The swivel design allows the threaded end to rotate during installation, reducing the need to rotate the tube or connected component. This fitting is installed by plumbers, pneumatic system technicians, and industrial maintenance professionals working with metric tube-and-thread assemblies.

This fitting is suited for general-purpose pneumatic and fluid conveyance systems where 6mm tubing meets M5 metric threaded ports. Typical applications include light industrial automation, pneumatic control panels, and instrumentation lines. The push-to-connect end accepts tubing with a 6mm outside diameter for fast, tool-free tube insertion, while the M5 thread end connects directly to manifolds, valves, or equipment ports with M5 threaded inlets.

Key Features

• Push-to-connect end accepts 6mm outside diameter tubing without tools
• M5 metric thread on the swivel end for direct port connection
• Nickel-plated brass construction for corrosion resistance in general-purpose service
• Buna-N o-ring provides reliable sealing at the threaded connection
• Rated to 250 psi maximum working pressure
• Compliant with REACH, RoHS, ISO 14743:2004, and PED 2014/68/UE standards

Compatibility

Designed for general-purpose pneumatic and fluid system applications using 6mm outside diameter tubing and M5 metric threaded ports.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid system assembly. Depressurize and isolate the system fully before removing or installing any fitting. The swivel thread end should be tightened to the port before inserting tubing into the push-to-connect end. Verify tubing outside diameter and cut ends are clean and square before insertion to ensure a proper seal.
