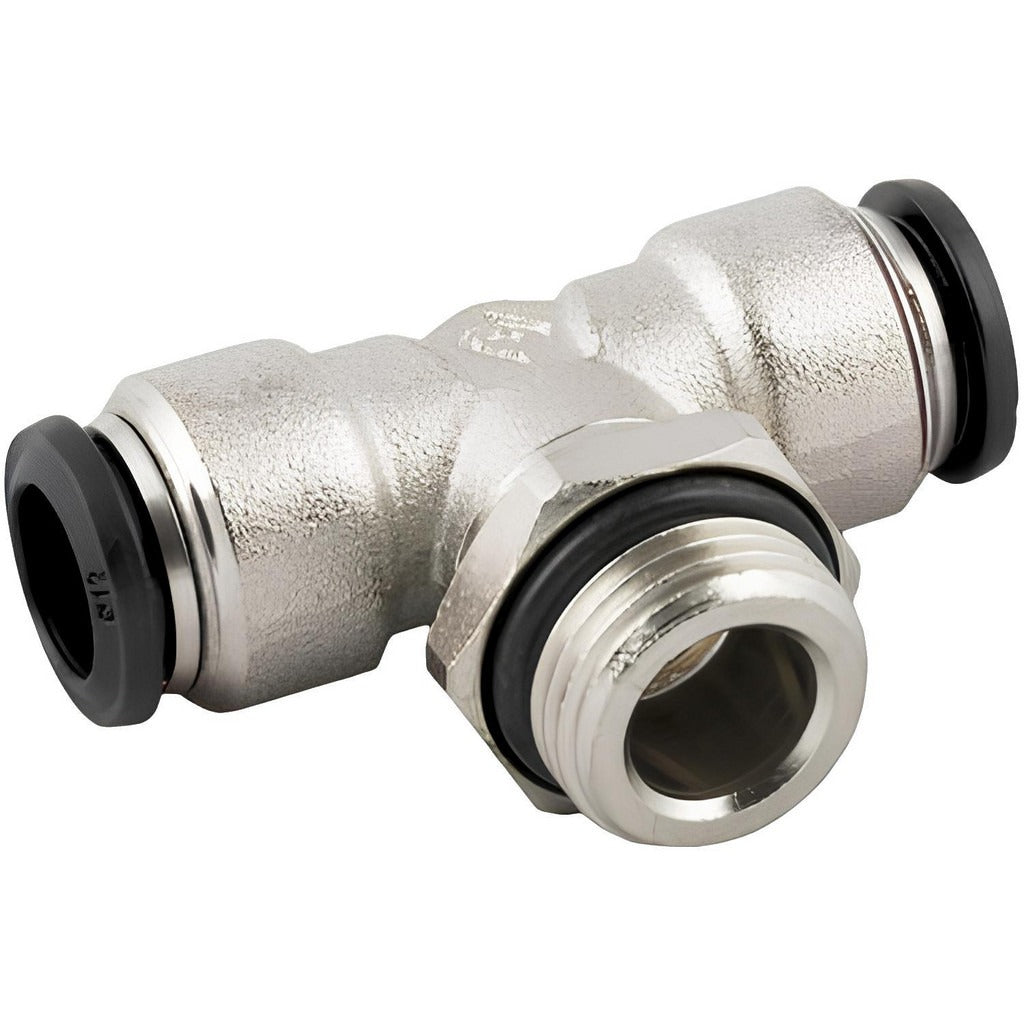

Aignep Usa 50215N-5-M5 Swivel Branch Tee 5mm M5

Product Description

The AIGNEP USA 50215N-5-M5 is a push-to-connect swivel branch tee fitting designed to join 5mm outside diameter tubing to an M5 metric threaded port. Constructed from nickel-plated brass with a Buna-N O-ring seal, it handles working pressures up to 250 psi across a service temperature range of -4 degrees F to 160 degrees F. The swivel branch design allows the tee body to rotate on the threaded port, simplifying alignment during installation. Plumbers, pneumatic system technicians, and general-purpose fluid system installers use this fitting in compressed air and fluid distribution lines.

This fitting is suited for general-purpose pneumatic and fluid handling applications in both light industrial and commercial environments. The push-to-connect end accepts 5mm OD tubing without tools, while the M5 metric thread connects directly to manifolds, valve bodies, or ported components. The overall length of 1.575 inches keeps the assembly compact in tight routing layouts. It is a practical choice wherever a branch tee connection is needed at an M5 threaded port.

Key Features

• Push-to-connect end accepts 5mm OD tubing - no tools or ferrules required
• Swivel branch body rotates on M5 metric thread for easy port alignment
• Nickel-plated brass construction resists corrosion in general-purpose service
• Rated to 250 psi maximum working pressure
• Buna-N O-ring sealing element for compatibility with common pneumatic and fluid media
• Compliant with REACH 1907/2006, RoHS 2011/65/CE, ISO 14743:2004, and PED 2014/68/UE

Compatibility

Designed for general-purpose pneumatic and fluid system use with 5mm outside diameter tubing and M5 metric threaded ports. No specific model or system compatibility was stated in the product data.

Installation Notes

This fitting is typically installed by pneumatic system technicians or plumbers working on compressed air or fluid distribution lines. Depressurize and isolate the system completely before removing or installing any fittings. Insert tubing fully into the push-to-connect end until it seats to ensure a leak-free connection; use the collet release collar to disengage the tube when servicing. Verify that the M5 threaded port is clean and undamaged before threading in the swivel body.
