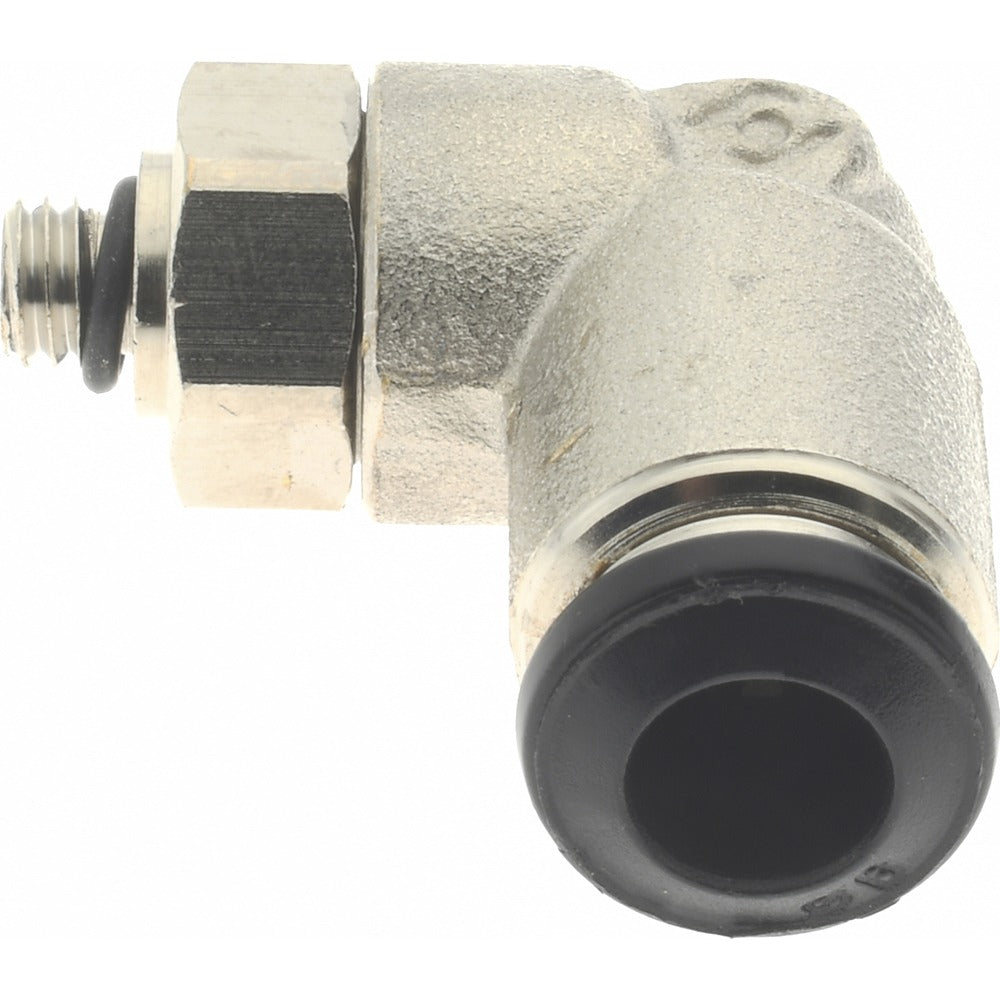

Aignep Usa 50115N-6-M5 Swivel Elbow Tube Fitting M5

Product Description

The AIGNEP USA 50115N-6-M5 is a push-to-connect swivel elbow tube fitting designed to join a 6 mm outside diameter tube to an M5 metric thread port. Constructed from nickel-plated brass, it delivers a maximum working pressure of 250 psi and operates across a temperature range of -4 degrees F to 160 degrees F. The swivel elbow configuration allows the fitting body to rotate after installation, making it easier to align tubing runs in tight or awkward spaces. This fitting is suited for pneumatic plumbing and fluid transfer applications where a secure, tool-free tube connection to a metric-threaded port is required.

This fitting is used in pneumatic systems, light industrial fluid lines, and automation equipment where 6 mm OD tubing must terminate at an M5 metric thread port. The push-to-connect design allows technicians to insert tubing by hand without additional tooling, speeding up assembly and simplifying field service. It is appropriate for both original equipment manufacturing and aftermarket replacement in compact pneumatic circuits, manifold connections, and similar low-to-medium pressure applications.

Key Features

• Push-to-connect design accepts 6 mm OD tubing without tools
• Swivel elbow body rotates after installation for flexible tube routing
• Nickel-plated brass construction resists corrosion in industrial environments
• Rated to 250 psi maximum working pressure
• Operating temperature range of -4 degrees F to 160 degrees F
• Buna O-ring seal for reliable pneumatic and fluid-line integrity
• Compliant with REACH 1907/2006, RoHS 2011/65/CE, ISO 14743:2004, and PED 2014/68/UE

Compatibility

Designed for use with 6 mm outside diameter tubing and M5 metric thread ports in pneumatic and fluid transfer systems. Connection type is tube by metric thread.

Installation Notes

Installation is typically performed by pneumatic system technicians or industrial maintenance personnel. Depressurize and lock out the system before removing or installing fittings. Insert tubing straight and fully into the collet until it seats; to release, depress the collet ring and pull the tube out. Verify thread engagement at the M5 port is complete and check for leaks before returning the system to service.
