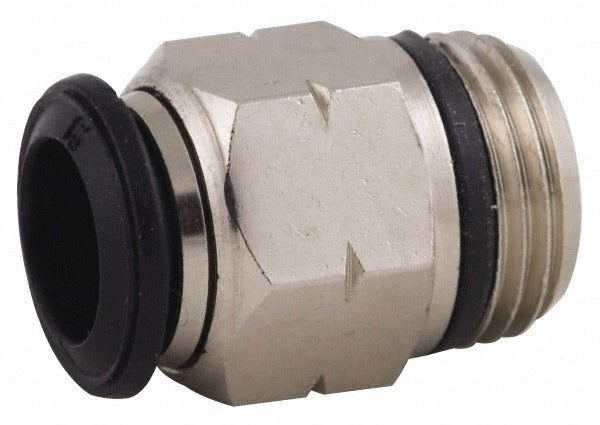

Aignep Usa 50000N-12-1/2 Push-to-connect Tube Fitting

Product Description

The AIGNEP USA 50000N-12-1/2 is a male straight push-to-connect tube fitting designed to join a 12mm OD tube to a universal thread port without tools. The body is nickel-plated brass for corrosion resistance and durability in industrial and trade environments. Rated to 250 psi maximum working pressure, this fitting handles demanding pneumatic and fluid-transfer applications. The push-to-connect design locks tubing securely on insertion and releases with a simple collar press. Licensed plumbers, HVAC technicians, and industrial maintenance technicians are the primary installers.

This fitting is suited for pneumatic control systems, compressed air distribution, and fluid conveyance lines in both light commercial and industrial installations. The 12mm OD tube connection pairs with a 1/2 inch universal thread male end, making it a practical interface fitting wherever a threaded port must transition to push-connect tubing. It operates across a temperature range of -4 degrees F to 160 degrees F, keeping it viable in unheated mechanical spaces as well as heated equipment enclosures.

Key Features

• Nickel-plated brass body resists corrosion in damp or chemical-exposure environments
• 250 psi maximum working pressure rating for pneumatic and fluid service
• 12mm OD push-to-connect inlet for tool-free tube insertion and positive locking
• 1/2 inch universal male thread outlet for broad port compatibility
• Buna O-ring seal maintains leak-free connection across the rated temperature range
• Compliant with REACH, RoHS, ISO 14743:2004, and PED 2014/68/UE standards

Compatibility

Designed as a replacement or new-installation push-to-connect male straight fitting for systems using 12mm OD tubing and 1/2 inch universal thread ports in pneumatic or fluid-transfer applications.

Installation Notes

Installation is performed by plumbers, pipefitters, or industrial maintenance technicians. Before installing or removing any fitting, depressurize the system completely and verify zero pressure at the connection point. Cut tubing square and deburr the end before inserting it into the push-connect collet to ensure a proper seal. To release the tubing, press the collet ring squarely toward the fitting body while withdrawing the tube.
