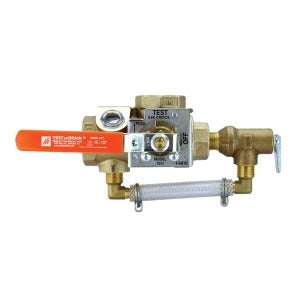

Agf Manufacturing 150AGF1011A Test and Drain W/Relief 1/2 Orifice

Product Description

The AGF MANUFACTURING 150AGF1011A is a lightweight and compact, 300 PSI rated, single-handle, ball valve with a pressure relief valve designed to provide both the test and express drain functions required for a wet fire sprinkler system. The valve eliminates the numerous connections the traditional assembly loop requires, saving time, space, and money.

• Lightweight and compact design
• 300 PSI rated
• Single-handle ball valve
• Pressure relief valve

Product Highlights

Features a tamper-resistant test orifice and sight glass, a tapped port for system access, and is field repairable without removing the valve.

Product Information

Standard Information

• Brand: AGF MANUFACTURING
• Manufacturer Part Number: 150AGF1011A
• Country of Origin: USA

Technical Specifications

• Series/Model: Model 1011A
• Nominal Size: 1-1/2 IN
• Connection Type: FNPT
• Pressure Rating: 300 PSI
• Body Material: Bronze
• Handle Material: Steel
• Stem Material: Rod Brass
• Trim Material: Brass Ball
• Seat Material: Impregnated Teflon
• Industry Standards: NFPA 13, C/US UL Listed To EX4019 And EX4533, FM Approved, NYC-BSA Number 720-87-SM
• Width: 8-15/16 IN
• Height: 10-7/8 IN
• Lead Free: No
• Other Physical Dimension: 5-1/16 IN Depth, 1/2 IN Orifice
• Sub Brand: TESTanDRAIN®
• Item Name: Test And Drain Valve With Relief
